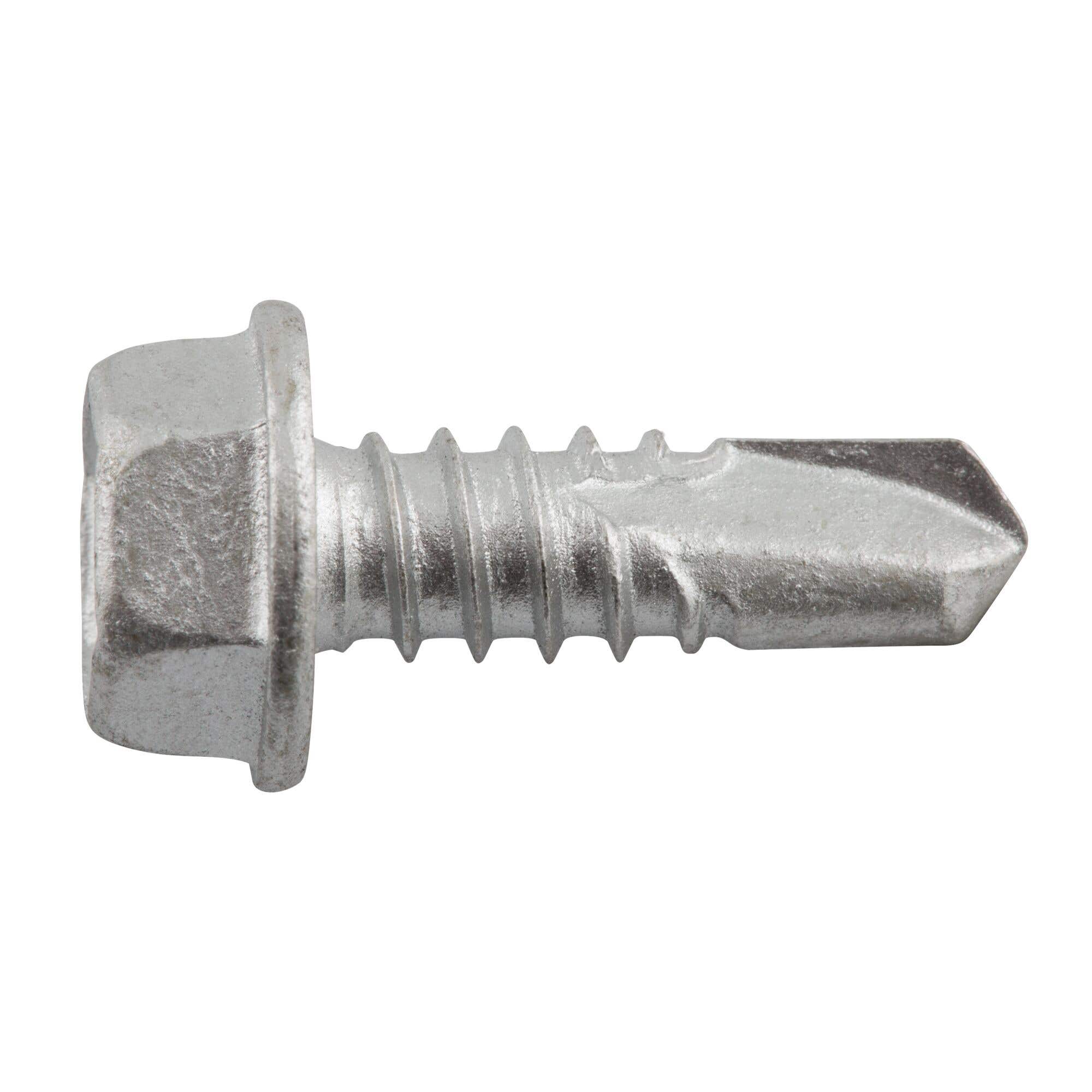

1/4-14 x 1 Alumi-Flex Self-Drilling Screws, Hex Washer Head, #3 Point, 302 Stainless Steel with Stalgard GB Coating
1/4-14 x 1 Alumi-Flex Self-Drilling Screws, Hex Washer Head, #3 Point, 302 Stainless Steel with Stalgard GB Coating
1/4-14 x 1 Alumi-Flex Self-Drilling Screws, Hex Washer Head, #3 Point, 302 Stainless Steel with Stalgard GB Coating

DeWalt

1/4-14 x 1" Alumi-Flex Self-Drilling Screws, Hex Washer Head, #3 Point, 302 Stainless Steel with Stalgard GB Coating

DEW DFSEAH820

Available to Order

$1305.90 /Box

(3000/Box)

Overview

Alumi-Flex structural drill screws are 300 series (18-8) stainless steel self-drilling tapping screws that are used for fastening to aluminum when corrosion resistance and galvanic reaction are a primary concern.

Specifications
General
Product Type
Self-Drilling Screw
UOM
BX
Unit Size
3000
Pieces Per Unit
3000/BX
Weight
48.000000
Product Brand
DeWalt
Product Sub Brand
Alumi-Flex™
MPN
EAH820-I
UPC
662963028059
Technical
Diameter
1/4"
Length
1"
Material
Stainless Steel
Steel Grade
18-8
Finish
Stalgard® GB
Drive Type
Hex
Head Dia.
0.500"
Head Type
Hex Washer
Point Size
#3
Point Type
Self-Drill
TPI
14
Thread Size
1/4"-14
Max Load Bearing Length
0.438
Head-Height
0.220"
ICC Approved
Yes
Driver Size
3/8"
Drive Size
6848
Washer Type
Integrated Washer
APPROVALS & LISTING
  • Tested in accordance with AISI S905
ICC ES Document 1
Related Documents
Related Tech Resources
Alumi-Flex™ 302 (18-8) Stainless Steel Drill Screws Technical Specification Data
