DeWalt

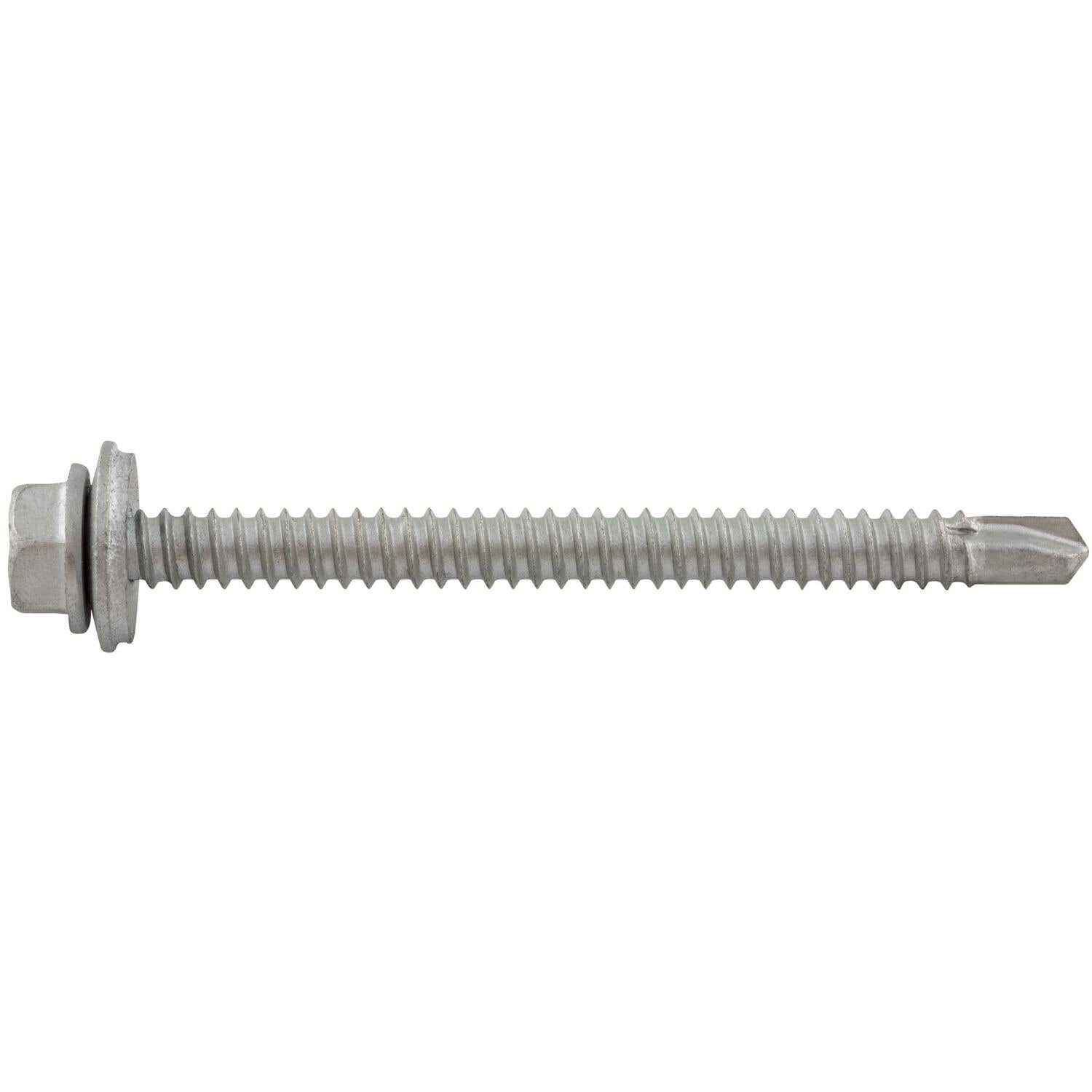

1/4-14 x 4" Drilit Self-Drilling Screws, 3/8" Hex Washer Head with Bonded Sealing Washer, #3 Point, Case Hardened Carbon Steel with Stalgard Coating, ICC Code Approved, ESR-3294

Name: 1/4-14 x 4'' Drilit Self-Drilling Screws, 3/8'' Hex Washer Head with Bonded Sealing Washer, #3 Point, Case Hardened Carbon Steel with Stalgard Coating, ICC Code Approved, ESR-3294
Brand: DeWalt
SKU: DEW DFSEHL610
Availability: InStock

DEW DFSEHL610

IN STOCK

Overview

Drilit® self-drilling fasteners eliminate separate drilling and tapping operations for faster, more economical installations.

Specifications

General

Product Type: Self-Drilling Screw w/ Bonded Sealing Washer
UOM: C
Unit Size: 100
Pieces Per Unit: 100/C
Weight: 4.900000
Product Brand: DeWalt
Product Sub Brand: Drilit®
MPN: DFSEHL610
UPC: 662963031219

Technical

Diameter: 1/4"
Length: 4"
Material: Case Hardened Steel
Finish: Stalgard®
Drive Type: Hex
Head Type: Hex Washer w/ Neoprene Bonded Washer
Point Size: #3
Point Type: Self-Drill
TPI: 14
Washer Dia.: 5/8"
General Applications: Steel-to-steel connections Wood-to-steel connections Composite material-to-steel connections
Max Load Bearing Length: 3.3
Head-Height: 0.305
ICC Approved: Yes
Driver Size: 3/8"
Shank Dia: 1/4"
Min Protrusion Length: 5/8"
Drive Size: 6848
Washer Type: Bonded Sealing Washer

Compliance

DFAR Compliant: No
QSLD Compliant: No

APPROVALS & LISTING

International Code Council, Evaluation Service (ICC-ES), ESR-3294
International Code Council, Evaluation Service (ICC-ES), ESR-4367
Code compliant with the International Building Code/International Residential Code: 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
Tested in accordance with ICC-ES AC118 for use in Steel-to-Steel Connections
Tested in accordance with ICC-ES AC500 for attaching Miscellaneous Building Materials to Steel
