DeWalt

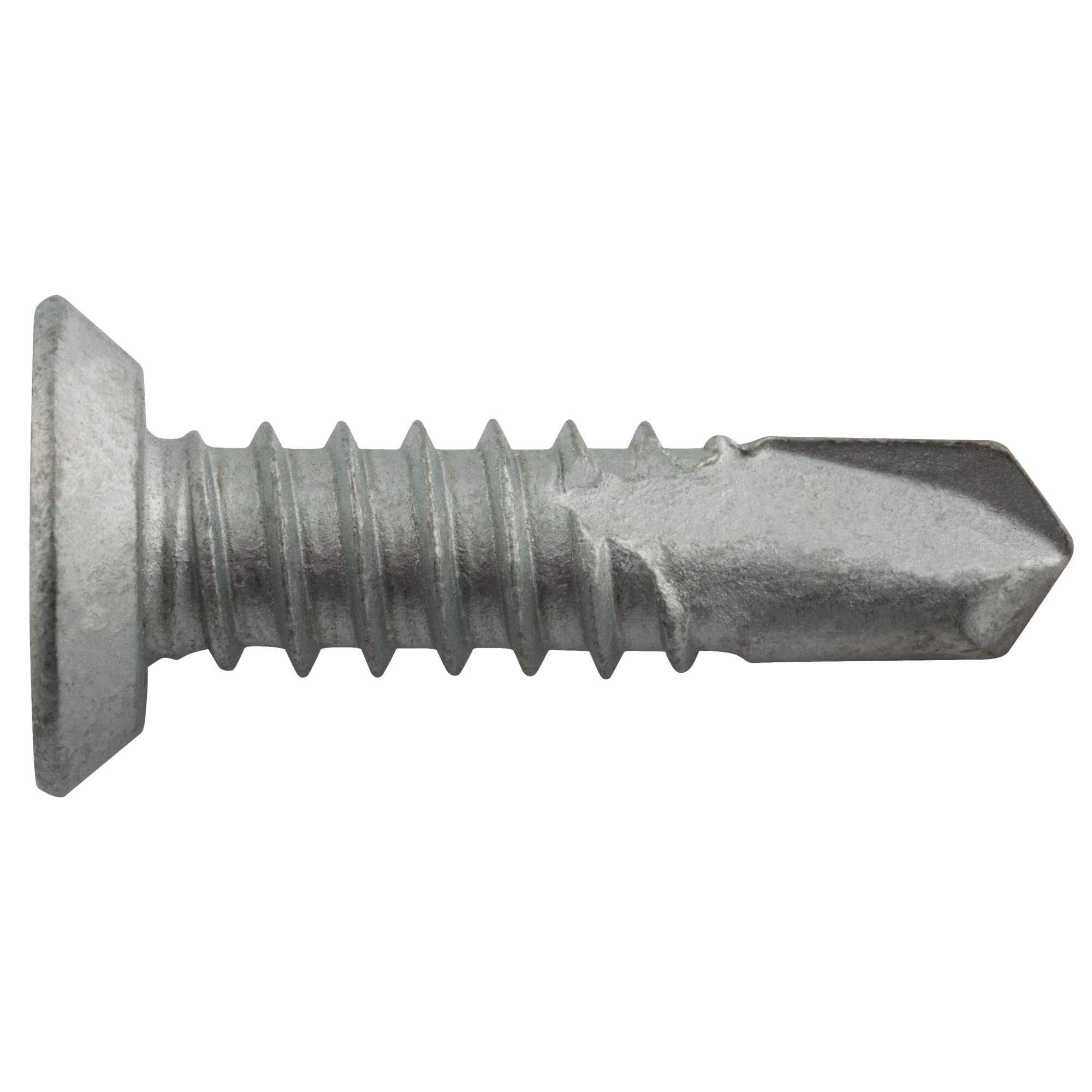

#10 x 3/4" Alumi-Flex Self-Drilling Screws, Undercut Flat Phillips Head, #3 Point, 302 Stainless Steel with Stalgard GB Coating

DEW DFSEBM160-100

IN STOCK

$17.99 /Box

(100/Box)

Overview

Alumi-Flex structural drill screws are 300 series (18-8) stainless steel self-drilling tapping screws that are used for fastening to aluminum when corrosion resistance and galvanic reaction are a primary concern.

Specifications
General
Product Type
Self-Drilling Screw
UOM
BX
Unit Size
100
Pieces Per Unit
100/BX
Weight
0.440000
Product Brand
DeWalt
Product Sub Brand
Alumi-Flex™
MPN
DFSEBM160
Technical
Diameter
#10
Length
3/4"
Material
Stainless Steel
Steel Grade
302
Finish
Stalgard® GB
Drive Type
Phillips
Head Dia.
0.35"
Head Type
Flat Undercut
Point Size
#3
Point Type
Self-Drill
TPI
16
Max Load Bearing Length
0.5
Head-Height
0.075"
ICC Approved
Yes
Cordless
No
Compliance
DFAR Compliant
No
QSLD Compliant
No
APPROVALS & LISTING
  • International Code Council, Evaluation Service (ICC-ES), ESR-4374
  • Code compliant with the International Building Code/International Residential Code: 2021 IBC/IRC, 2018 IBC/IRC, 2015IBC/IRC and 2012 IBC/IRC
  • 2020 Los Angeles Building Code (LABC) and Los Angeles Residential Code (LARC) ICC-ES Report Supplement
  • 2020 Florida Building Code (FBC) ICC-ES Report Supplement
  • Tested in accordance with ICC-ES AC491 for use in Aluminum
ERS 4374
