Home→#12-14 x 1" Architectural Roof Clip Self-Drilling Screws for Steel Applications, Pancake Head with #2 Phillips Head, #3 Point, Carbon Steel with Silver Stalgard Coating→

DeWalt

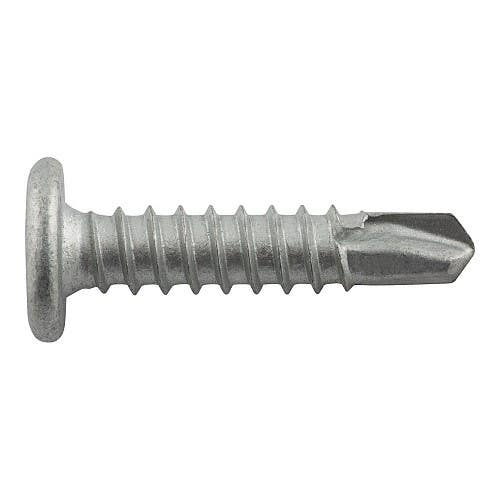

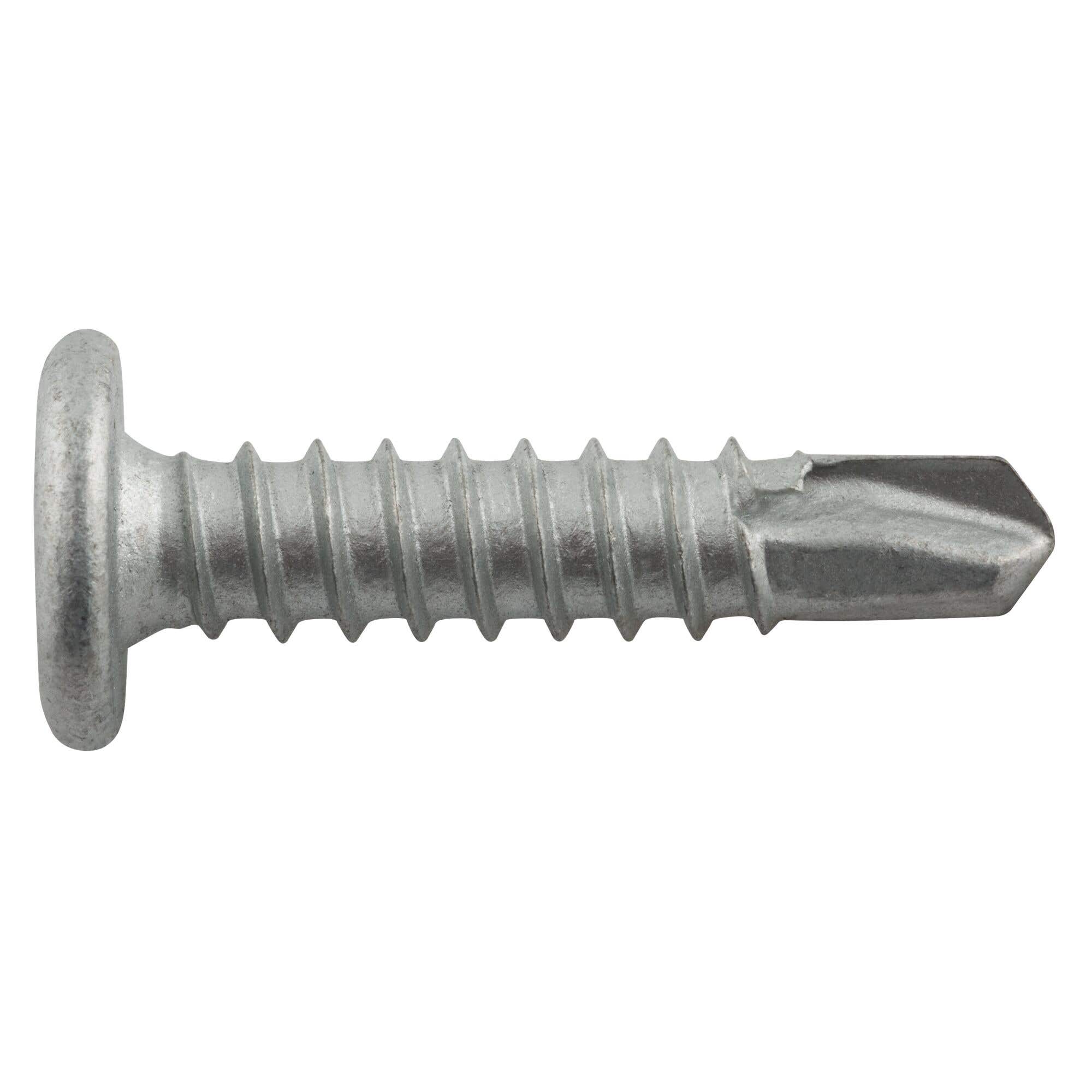

#12-14 x 1" Architectural Roof Clip Self-Drilling Screws for Steel Applications, Pancake Head with #2 Phillips Head, #3 Point, Carbon Steel with Silver Stalgard Coating

DEW DFSEDO735

Available to Order

$356.00 /Box

(4000/Box)

Overview

Tap-Flex is experiencing both high-demand and manufacturing delays & unavailability - contact a Tanner Fastener Specialist for Tap-Flex Solutions & Alternatives

These thread-forming screws are dual heat treated, self-tapping fasteners that provide the strength, ductility, and resistance to embrittlement failures required in critical curtain wall and dissimilar metal applications. Tap-Flex® screws are thread formers with the patent-pending E-form® segmented thread profile. This design improves both installation and in-place performance.
Specifications
General
Product Type
Self-Drilling Architectural Clip Screw
UOM
BX
Unit Size
4000
Pieces Per Unit
4000/BX
Weight
40.000000
Product Brand
DeWalt
MPN
DFSEDO735
Technical
Diameter
#12
Length
1"
Material
Case Hardened Steel
Finish
Stalgard® Silver

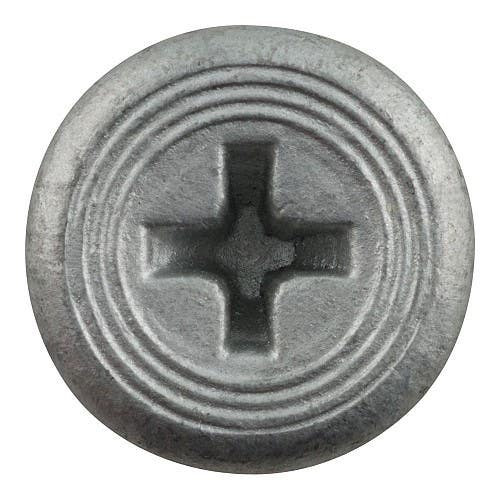

Drive Type
Phillips
Head Dia.
0.437
Head Style
pancake
Head Type
Pancake
Point Size
#3
Point Type
Self-Drill
TPI
14
Driver Size
#2
Drive Size
6869
Compliance
DFAR Compliant
No
QSLD Compliant
No
APPROVALS & LISTING
pim_approvals_icc_es_slot1_doc_txtpim_approvals_cola_slot1_doc_txt
