DeWalt

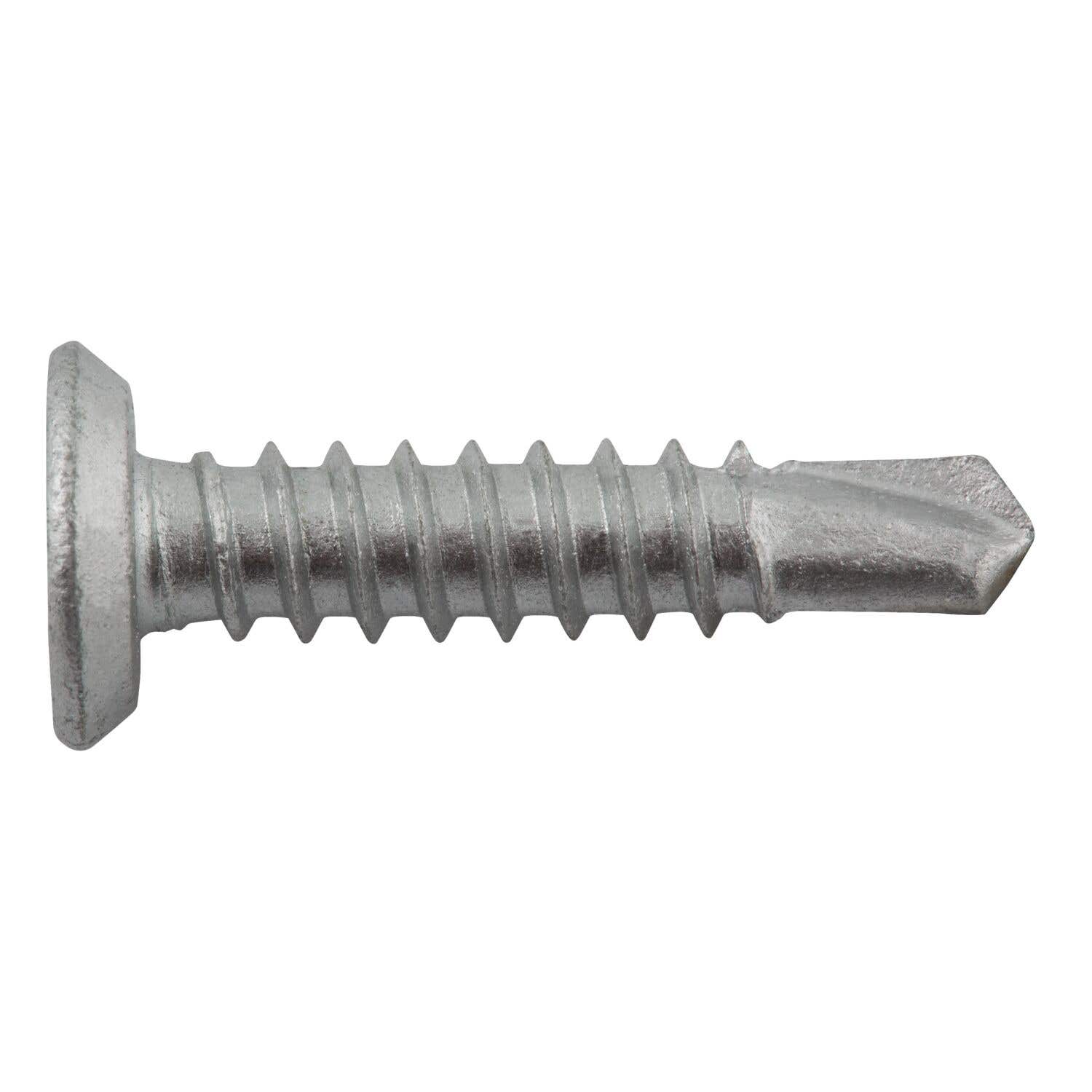

#12-14 x 1" Bi-Flex 300 Series Bi-Metal Self-Drilling Screws, Undercut Flat Head with #3 Phillips Drive, #2 Point, Hardened Steel Tapping Threads and Point, 18-8 Stainless Steel Head and Shank with Stalgard GB Coating
DEW DFSEBN200
Available to Order
$2141.20 /Box
(4000/Box)
Specifications
General
- Product Type
- Self-Drilling Screw
- UOM
- BX
- Unit Size
- 4000
- Pieces Per Unit
- 4000/BX
- Weight
- 31.200000
- Product Brand
- DeWalt
- Product Sub Brand
- Bi-Flex®
- MPN
- DFSEBN200
- UPC
- 662963001021
Technical
- Diameter
- #12
- Length
- 1"
- Material
- Stainless Steel
- Steel Grade
- 18-8
- Finish
- Stalgard® GB
- Drive Type
- Phillips
- Head Dia.
- 0.415"
- Head Type
- Flat Undercut
- Point Size
- #2
- Point Type
- Self-Drill
- TPI
- 14
- Max Load Bearing Length
- 0.406"
- Head-Height
- 0.09"
- ICC Approved
- Yes
- Driver Size
- #3
- Shank Dia
- #12
- Min Protrusion Length
- 19/32"
- Drive Size
- 6873
Compliance
- DFAR Compliant
- No
- QSLD Compliant
- No
APPROVALS & LISTING
- International Code Council, Evaluation Service (ICC-ES), ESR-4367
- International Code Council, Evaluation Service (ICC-ES), ESR-4374
- Code compliant with the International Building Code/International Residential Code:2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC and 2012 IBC/IRC
- 2020 Los Angeles Building Code (LABC) and Los Angeles Residential Code (LARC) ICC-ES Report Supplement
- 2020 Florida Building Code (FBC) ICC-ES Report Supplement
- Tested in accordance with AISI S905 and ICC-ES AC500 for attaching Miscellaneous Building Materials to Steel
- Tested in accordance with ICC-ES AC491 for use in Aluminum
Related Documents
Related Tech Resources
More Like This
Check items to add to the cart or
IN STOCK
Elco Construction Products
ELC EBN240-100

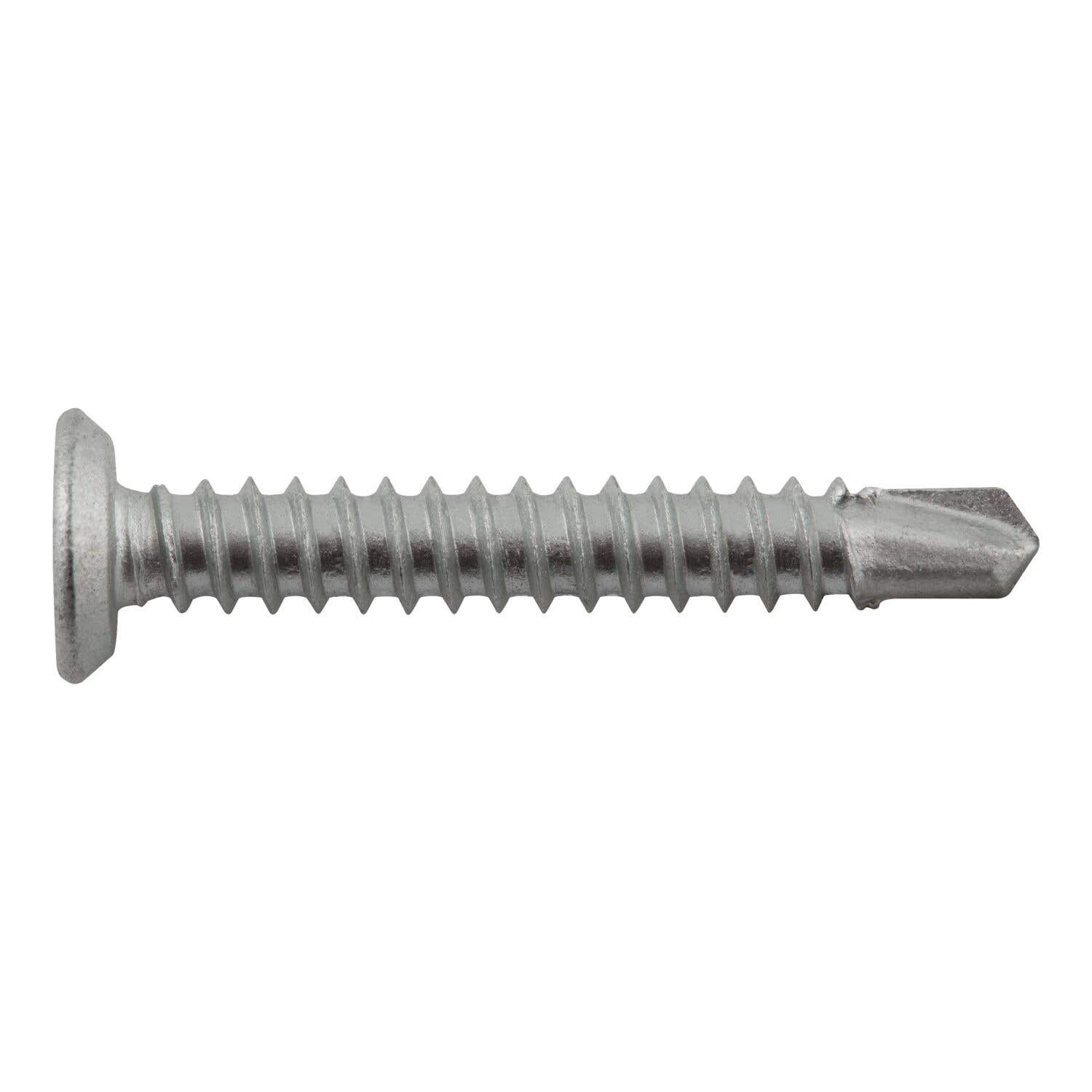

#12-14 x 1-1/2" Bi-Flex 300 Series Bi-Metal Self-Drilling Screws, Undercut Flat Head with #3 Phillips Drive, #2 Point, Hardened Steel Tapping Threads and Point, 18-8 Stainless Steel Head and Shank with Stalgard GB Coating
