AC200+™ Injection Adhesive Anchoring System & Post-Installed Reinforcing Bar Connections

The AC200+ is a two-component, high-strength concrete anchor epoxy system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools, and hole cleaning equipment. The AC200+ is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete base materials and for post-installed reinforcing bar connections.

Acrylic Injection Adhesive Anchoring System & Post-Installed Reinforcing Bar Connections

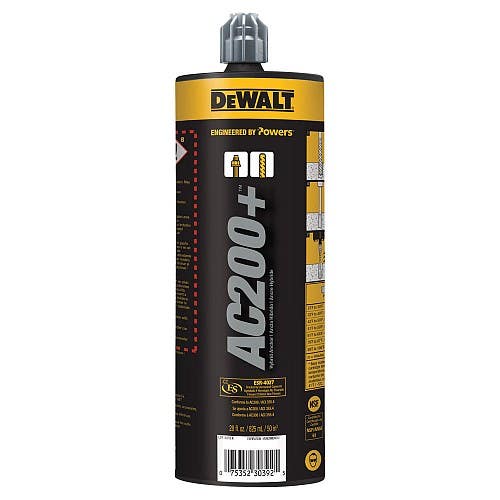

AC200+™ Adhesives

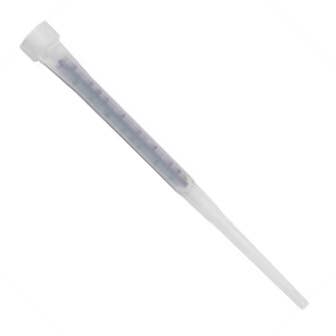

AC200+™ Mixing Nozzles

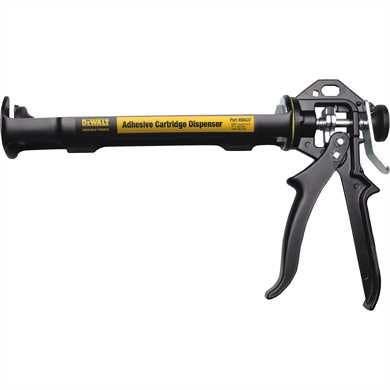

AC200+™ Installation Tools

SKU	Product Type	Size	Pieces Per Unit	Price
DEW PFC1271050	Injection Adhesive	9.5 oz.	12/Box	$347.40
DEW PFC1271150	Injection Adhesive	28 oz.	8/Box	$368.00

Displaying 2 of 2 Products

SKU	Product Type	Size	Pieces Per Unit	Price
DEW PFC1641600	Injection Adhesive Tool	10 oz. / 28 oz.	2/Box	$5.20

Displaying 1 of 1 Products

Features and Benefits:

Designed for use with threaded rod and reinforcing bar hardware elements
Evaluated and recognized for freeze/thaw performance
Cartridge design allows for multiple uses using extra mixing nozzles
Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
Evaluated and recognized for long term and short term loading

Storage Life & Conditions:

Dual cartridge: Eighteen months
Coaxial cartridge: Eighteen months
Store in a dry, dark environment with temperature ranging from 41°F to 90°F (5°C to 32°C)

General Applications and Uses:

Bonding threaded rod and reinforcing bar into hardened concrete
Evaluated for installation and use in dry and wet concrete
Fast curing system which can be installed in a wide range of base material temperatures; qualified for structural applications in concrete and masonry as low as 14ºF (-10ºC)
Qualified for seismic (earthquake) and wind loading

Suitable Base Materials

Normal-weight concrete
Lightweight concrete

Permissible Installation Conditions:

Dry concrete
Water-saturated concrete (wet)
Water-filled holes (flooded)

Approvals & Listings:

International Code Council, Evaluation Service (ICC-ES) ESR-4027 for cracked and uncracked concrete
Code Compliant with the International Building Code/International Residential Code: 2018 IBC/IRC, 2015 IBC/IRC, 2012 IBC/IRC, and 2009 IBC/IRC
Tested in accordance with ACI 355.4, ASTM E488, and ICC-ES AC308 for use in structural concrete (Design according to ACI 318-14, Chapter 17 and ACI 318-11/08 Appendix D)
Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading
Compliant with NSF/ANSI 61 for drinking water system components - health effects; minimum requirements for materials in contact with potable water and water treatment
Conforms to requirements of ASTM C881 and AASHTO M235, Types I, II, IV and V, Grade 3, Class A
Department of Transportation listings
