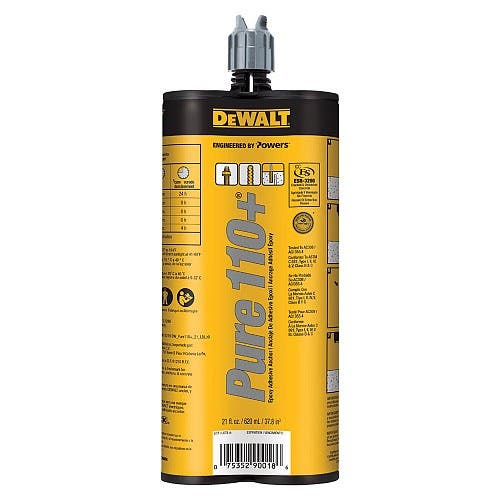

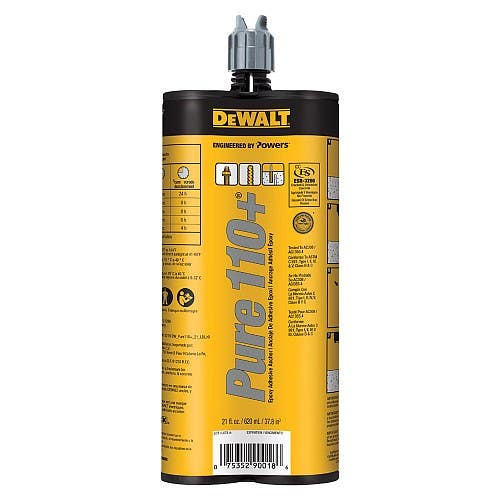

Pure110+® Injection Adhesive Anchor System

The Pure110+ is a two-component, high-strength adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools, and hole cleaning equipment. The Pure110+ is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete and masonry base materials and for post-installed reinforcing bar connections.

Concrete Epoxy Anchoring System & Post-Installed Reinforcing Bar Connections

Pure110+® Adhesives

Pure110+® Mixing Nozzles

Pure110+® Installation Tools

SKU	Product Type	Size	Pieces Per Unit	Price
POW 08310SD	Injection Adhesive	9 oz.	12/Box	$235.20
POW 08321SD	Injection Adhesive	21 oz.	12/Box	$432.60

Displaying 2 of 2 Products

SKU	Product Type	Size	Pieces Per Unit	Price
DEW PFC1641600	Injection Adhesive Tool	10 oz. / 28 oz.	2/Box	$5.20
POW 08609	Injection Adhesive Tool	-	1/EA	$9.20

Displaying 2 of 2 Products

SKU	Product Type	Size	Pieces Per Unit	Price
POW 08409	Injection Adhesive Tool	20.5 oz.	1/EA	$66.15
POW 08421	Injection Adhesive Tool	20.5 oz.	1/EA	$143.15

Displaying 2 of 2 Products

Features and Benefits:

High load capacity
Two-level expansion mechanism
Internal high strength bolt is removable and reusable
Compression zone in sleeve clamps fixture to the base material
Low profile finished head design

General Applications and Uses:

Bonding threaded rod and reinforcing bar into hardened concrete
Rebar development length connections in concrete
Evaluated for installation and use in dry and wet holes, including water-filled and submerged
Can be installed in a broad range of base material temperatures with good working times
Cracked and uncracked concrete
Seismic and wind loading
Oversized hammer-drilled holes in concrete, for short term loading only

Suitable Base Materials

Normal-weight concrete
Lightweight concrete
Grouted Concrete Masonry
Hollow Concrete Masonry

Permissible Installation Conditions:

Dry concrete
Water-saturated concrete (wet)
Water-filled holes (flooded)
Underwater concrete (submerged)

Storage Life & Conditions:

Dual cartridge: Two years
Coaxial cartridge: Eighteen months
Store in a dry, dark environment with temperature ranging from 41°F to 86°F (5°C to 30°C)

Approvals & Listings:

International Code Council, Evaluation Service (ICC-ES) ESR-3298 for cracked and uncracked concrete
Code Compliant with 2018 IBC/IRC, 2015 IBC/IRC, 2012 IBC/IRC, 2009 IBC/IRC
Conforms to requirements of ASTM C 881 and AASHTO M235, Types I, II, IV, and V, Grade 3, Classes B & C (also meets Type III except for elongation)
Department of Transportation listings
Tested in accordance with ACI 355.4, ASTM E 488, and ICC-ES AC308 for use in structural concrete.
(Design according to ACI 318-14, Chapter 17 and ACI 318-11/08 Appendix D)
Tested and qualified for use in post-installed reinforcing bar connections
Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete, including seismic and wind loading
Compliant with NSF/ANSI 61 for drinking water system components - health effects; minimum requirements for materials in contact with potable water and water treatment
