Powder-Actuated Threaded Studs Rod Hangers & Assemblies

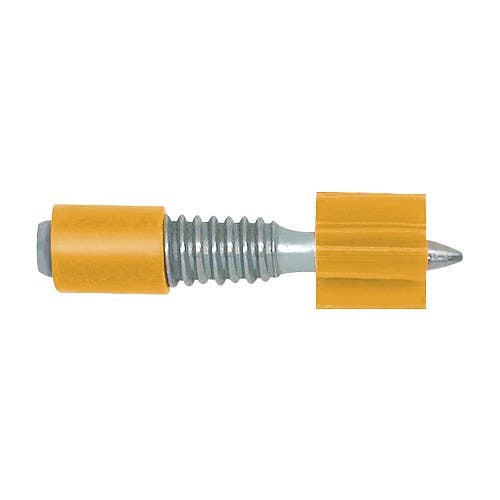

Threaded studs are available in 1/4"-20 and 3/8"-16 thread diameters with various external thread and shank lengths for use in concrete, concrete over steel deck, concrete masonry walls and steel. They are used for applications where it may be desirable to remove the fixture or where shimming may be required or for suspending small diameter pipe (e.g. water lines, sprinkler systems). Knurled shank designs are available to increase performance in steel base materials. A plastic flute is mounted on the pin shank to retain the drive pin in the barrel of the tool, providing guidance during the driving operation.

THREADED STUDS, ROD HANGERS & ASSEMBLIES

Rod hangers and post nut hanger clips are available for suspending mechanical and electrical components from concrete and steel. They have an internally threaded clip or post nut designed to accept either 1/4"-20 or 3/8"-16 threaded rod.

For the electrical trade, bX and EMT (electrical metallic tubing) conduit clips are provided in various sizes for attaching conduit to base materials where easy removal is not required.

Rebar basket clips are typically used in highway construction and paving applications to hold the support baskets for the reinforcing bars in place while the concrete is being poured.

General Applications and Uses

Threaded stud attachments for concrete, concrete over steel deck, concrete masonry, and steel
Attaching threaded rod hangers to concrete or steel
BX cable and EMT (electrical metallic tubing) attachments
Rebar/dowel basket anchorage

Suitable Base Materials

Normal-weight concrete
Lightweight concrete
Concrete over steel deck
Grouted concrete masonry (CMU)
Hollow concrete masonry (CMU)
Steel

Fastener Size Range

7/8" length through 1-1/4" length

Technical Specifications:

Jobber Drills
General Purpose
Number (Wire Gauge) Sizes
Low-Medium Steel Alloys
118 Degree Point

Approvals and Listings

International Code Council, Evaluation Service (ICC-ES), ESR-2024
Tested in accordance with ASTM E1190 and ICC-ES AC70 for use in concrete, concrete masonry and steel
Code compliant with the International Building Code/International Residential Code: 2018 IBC/IRC, 2015 IBC/IRC, 2012 IBC/IRC, and 2009 IBC/IRC

1/4"-20 Threaded Studs (UNC Thread)

3/8"-16 Threaded Studs (UNC Thread)

CSI Spiral and 8MM Head Drive Pins with Rod Hanger (UNC Thread)

0.300" Head Drive Pins with Conduit Clips

0.300" Head Drive Pins with BX Cable Straps

0.300" Head Drive Pins with Post Nut Rod Hanger (UNC Thread)

8MM Head Drive Pins with Rebar/Dowel Basket Clips

8MM Head Drive Pins with EMT Conduit Clips

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50322	Powder Actuated Fastening Threaded Stud	0.145"	3/4"	100/Box	$24.15
POW 50326	Powder Actuated Fastening Threaded Stud	0.145"	3/4"	100/Box	$24.25
POW 50330	Powder Actuated Fastening Threaded Stud	0.145"	3/4"	100/Box	$20.10

Displaying 3 of 3 Products

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50340	Powder Actuated Fastening Threaded Stud	0.205"	1-1/4"	100/Box	$59.50
POW 50342	Powder Actuated Fastening Threaded Stud	0.205"	1-1/4"	100/Box	$35.15
POW 50344	Powder Actuated Fastening Threaded Stud	0.205"	1-1/4"	100/Box	$34.55

Displaying 3 of 3 Products

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50221	Rod Hanging Anchor	0.145"	1-1/4"	100/Box	$50.55

Displaying 1 of 1 Products

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50386	Powder Actuated Fastening Drive Pins	0.145"	1-1/8"	100/Box	$27.15
POW 50385	Powder Actuated Fastening Drive Pins	0.145"	1"	100/Box	$50.75
POW 50384	Powder Actuated Fastening Drive Pins	0.145"	1-1/4"	100/Box	$22.15
POW 50382	Powder Actuated Fastening Drive Pins	0.145"	1"	50/Box	$13.73

Displaying 4 of 4 Products

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50150	Rod Hanging Anchor	0.145"	1"	100/Box	$25.00

Displaying 1 of 1 Products

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50378	Powder Actuated Fastening Drive Pins	0.145"	1-1/4"	100/Box	$59.45

Displaying 1 of 1 Products

SKU	Product Type	Diameter	Length	Pieces Per Unit	Price
POW 50278	Powder Actuated Fastening Drive Pins	0.145"	1"	100/Box	$31.50
POW 50280	Powder Actuated Fastening Drive Pins	0.145"	1"	25/Box	$9.75

Displaying 2 of 2 Products
