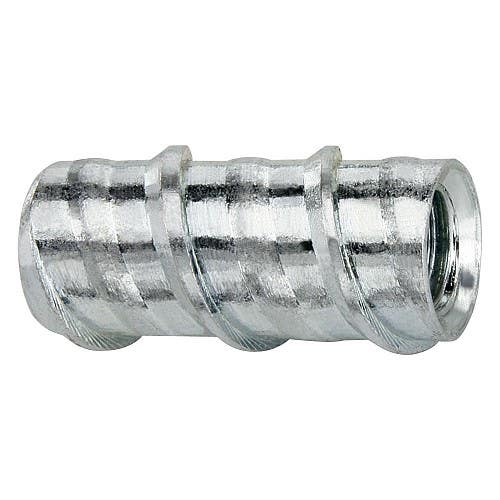

Snake+® Internally Threaded Screw Anchor

The Snake+ anchor is an internally threaded, self-tapping screw anchor designed for performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete and concrete over steel deck. The Snake+ screw anchor is installed into a drilled hole with a power tool and a Snake+ setting tool. After installation, a steel element is threaded into the anchor body.

Internally Threaded Screw Anchors

Features and Benefits:

Cracked concrete approved alternative to a dropin anchor
Designed for use in holes drilled with standard ANSI carbide drill bits
Anchor design allows for shallow embedment and mechanically interlocks with the base material
Internally threaded anchor for easy adjustment and removability of threaded rod or bolt
Fast anchor installation with a powered impact wrench
Hammer not used for installation

Anchor Materials:

Zinc plated carbon steel body

General Applications and Uses:

Suspending conduit, cable trays, and strut
Interior applications/low-level corrosion environment
Tension zone areas
Pipe supports
Seismic and wind loading applications
Fire sprinklers
Suspended lighting

Suitable Base Materials:

Normal-weight concrete
Sand-lightweight concrete
Concrete over steel deck

Approvals & Listings:

International Code Council, Evaluation Service (ICC-ES), ESR-2272 for concrete. Code compliant with the 2015 IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, 2009 IRC, 2006 IBC, and 2006 IRC
Tested in accordance with ACI 355.2 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318-14 Chapter 17 or ACI 318-11/08 (Appendix D)
Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (Category 1 anchor)
Evaluated and qualified by an accredited independent testing laboratory for reliability against brittle failure, e.g. hydrogen embrittlement
Evaluated and qualified by an accredited independent testing laboratory for supplemental recognition in redundant fastening applications
FM Global (Factory Mutual) - File No. 3038104 (see report for sizes) www.approvalguide.com - Pipe hanger components for automatic sprinkler systems

Snake+® Carbon Steel Zinc Anchors

Snake+® Anchor Setting Tools

SKU	Product Type	Diameter	Material	Finish	Pieces Per Unit	Price
POW 6403SD	Internally Threaded Screw Anchor	1/2"	Carbon Steel	Zinc	50/Box	$119.03
POW 6401SD	Internally Threaded Screw Anchor	3/8"	Carbon Steel	Zinc	50/Box	$34.30
POW 6400SD	Internally Threaded Screw Anchor	1/4"	Carbon Steel	Zinc	100/Box	$67.95

Displaying 3 of 3 Products

SKU	Product Type	Diameter	Length	Material	Finish	Pieces Per Unit	Price
POW 6407SD	Internally Threaded Screw Anchor Setting Tool		3/8"			1/EA	$7.75
POW 6404SD	Internally Threaded Screw Anchor Setting Tool		1/2"			1/Box	$12.60

Displaying 2 of 2 Products
