Bang-It®+ Cast-In Place Concrete Anchors

Bang-It+ concrete inserts anchors are designed for installation in and through composite steel deck (i.e. “pan-deck”) used to support newly poured concrete floor or roof slabs. The Bang-It+ concrete inserts are specifically designed to provide hangar attachments for mechanical, electrical, plumbing (MEP), and fire protection.

Cast-In-Place Concrete Inserts Anchors

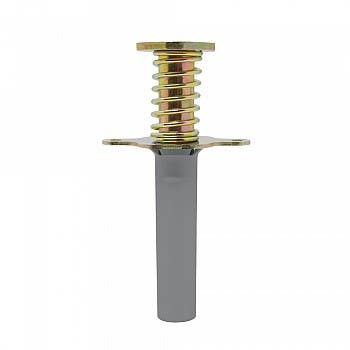

After installation, the protective sleeve of the insert protrudes below the surface of the deck. The sleeves are color-coded by size and allow overhead attachment of steel threaded rod in sizes ranging from 1/4" to 3/4" in diameter. The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking, or losing the insert location. A hex impact plate offers resistance to rotation within the concrete as a steel threaded rod is being turned during installation. A push-in thread version is also available which does not require turning the threaded rod or threaded bolt during installation, which can be ideal for applications such as mounting prefabricated hardware and hanger assemblies.

Features and Benefits:

High load capacity
Two-level expansion mechanism
Internal high strength bolt is removable and reusable
Compression zone in sleeve clamps fixture to the base material
Low profile finished head design

Suitable Base Materials:

Normal-weight Concrete
Lightweight Concrete

Insert Versions:

Single Thread
Multi Thread
Push-In Thread

Anchor Materials:

Carbon Steel and Engineered Plastic

General Applications and Uses:

Hanging Pipe and Sprinkler Systems
HVAC Ductwork and Strut Channels
Suspending Trapeze and Cable Trays
Mechanical Utility Lines
Conduit and Lighting Systems
Cracked and Uncracked Concrete

Approvals & Listings:

International Code Council, Evaluation Service (ICC-ES), ESR-3657 for concrete
Code compliant with the 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
Tested in accordance with ASTM E488 and ICC-ES AC446 for use in cracked and uncracked concrete and with the design provisions of ACI 318 (Strength Design method)
Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete as well as seismic and wind loading
Underwriters Laboratories (UL Listed) - File No. EX1289, see listing for sizes. Also UL listed and recognized for use in air handling spaces (i.e. plenum rated locations)
FM Approvals (Factory Mutual) – File No. J.I. 3015153, see approval for sizes

What is Cast-In-Place Anchor?

Cast-in-place anchor is an anchor bolts that is cast in wet concrete before the concrete sets. The Cast-in-place anchor bolt is installed into the foundation, which is then filled with wet concrete. The thread of the anchor is then exposed above the concrete.

What is Bang-It+ Cast-In-Place Anchor?

Bang-It+ concrete inserts are designed for installation in and through composite steel deck (i.e. “pan-deck”) used to support newly poured concrete floor or roof slabs.

SKU	Product Type	Product Name (Short)	Hole Size	Anchor Dia.	Color	Pieces Per Unit	Price
DEW PFM3523812	Cast-In-Place Concrete Insert	3/8-1/2" Bang-It®+ Cast-In-Place Concrete Insert Anchor			Gray	50/Box	$92.60
POW 07548	Cast-In-Place Concrete Insert	3/4" Bang-It+	1-1/4"	3/4"	Purple	50/Box	$264.48
POW 07546	Cast-In-Place Concrete Insert	5/8" Bang-It+	1-1/4"	5/8"	Red	50/Box	$187.74
POW 07544	Cast-In-Place Concrete Insert	1/2" Bang-It+	7/8"	1/2"	Yellow	100/Box	$257.72
POW 07540	Cast-In-Place Concrete Insert	1/4" Bang-It+	7/8"	1/4"	Brown	100/Box	$220.34

Displaying 5 of 5 Products
