Spike® Pin Anchors

The Spike is a one-piece, vibration-resistant anchor for use in concrete block or stone. Several head styles, including tamperproof versions, and anchor materials are available. The Spike anchor is formed with an "s" shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.

Pin Anchors

Features and Benefits:

Pre-expanded anchor design allows for easy installation
Mushroom and flat head Spike anchors are tamper-proof
Forming Spike, which is removable, can be used for temporary installations
Pipe and tie-wire Spike is a simple to install alternative to direct fastening (e.g. powder-actuated)

Anchor Materials

Zinc Plated Carbon Steel
Type 316 Stainless Steel

General Applications and Uses:

Tamperproof applications
Cable trays and strut
Available in corrosion-resistant stainless steel for exterior applications
Pipe hanging
Metal track attachments
Concrete formwork

Suitable Base Materials

Normal-Weight Concrete
Lightweight Concrete
Grouted Concrete Masonry (CMU)

Approvals & Listings:

Tested in accordance with ASTM E488 and AC01 criteria

Head Styles:

Mushroom Head
Flat Head
Pipe (Coupler Head)
Tie-Wire
Forming

Spike® Flat Head Carbon Steel (Tamperproof) Pin Anchor

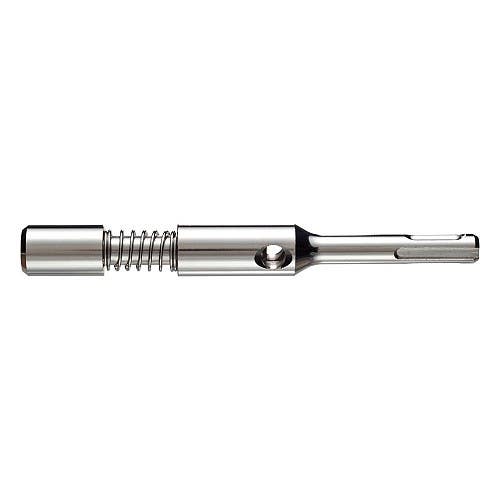

Spike® Driver Installation Tool

Spike® Tie-Wire Pin Anchors

Spike® Pipe Pin Anchor

Spike® Mushroom Head (Tamperproof) Pin Anchor

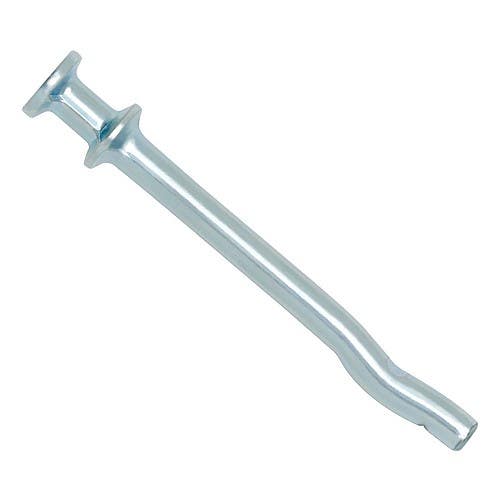

Spike® Forming Pin Anchors

SKU	Product Type	Diameter	Length	Head Type	Material	Finish	Pieces Per Unit	Price
POW 05632	Tamper-Proof Pin Anchor	1/4"	4"	Flat	Carbon Steel	Zinc	100/Box	$80.05
POW 05631	Tamper-Proof Pin Anchor	1/4"	3-1/2"	Flat	Carbon Steel	Zinc	100/Box	$57.15
POW 05630	Tamper-Proof Pin Anchor	1/4"	3"	Flat	Carbon Steel	Zinc	100/Box	$61.15
POW 05628	Tamper-Proof Pin Anchor	1/4"	2-1/2"	Flat	Carbon Steel	Zinc	100/Box	$53.95
POW 05626	Tamper-Proof Pin Anchor	1/4"	2"	Flat	Carbon Steel	Zinc	100/Box	$44.10
POW 05624	Tamper-Proof Pin Anchor	1/4"	1-1/2"	Flat	Carbon Steel	Zinc	100/Box	$41.15
POW 05612	Tamper-Proof Pin Anchor	3/16"	4"	Flat	Carbon Steel	Zinc	100/Box	$72.50
POW 05610	Tamper-Proof Pin Anchor	3/16"	3"	Flat	Carbon Steel	Zinc	100/Box	$56.40
POW 05608	Tamper-Proof Pin Anchor	3/16"	2-1/2"	Flat	Carbon Steel	Zinc	100/Box	$50.90

Displaying 9 of 9 Products

SKU	Product Type	Diameter	Length	Head Type	Material	Finish	Pieces Per Unit	Price
POW 03790	Tamper-Proof Pin Anchor Installation Tool				Steel	Zinc	1/EA	$97.25

Displaying 1 of 1 Products

SKU	Product Type	Diameter	Length	Head Type	Material	Finish	Pieces Per Unit	Price
POW 03759	Tamper-Proof Pin Anchor	1/4"	1-3/4"	Tie-Wire	Carbon Steel	Zinc	100/Box	$69.95
POW 03756	Tamper-Proof Pin Anchor	3/16"	1-1/4"	Tie-Wire	Carbon Steel	Zinc	100/Box	$64.00

Displaying 2 of 2 Products

SKU	Product Type	Diameter	Length	Head Type	Material	Finish	Pieces Per Unit	Price
POW 03758	Tamper-Proof Pin Anchor	3/8"		Rod Hanger	Carbon Steel	Zinc	50/Box	$35.50
POW 03755	Tamper-Proof Pin Anchor	1/4"		Rod Hanger	Carbon Steel	Zinc	100/Box	$52.70

Displaying 2 of 2 Products

SKU	Product Type	Diameter	Length	Head Type	Material	Finish	Pieces Per Unit	Price
POW 06602	Tamper-Proof Pin Anchor	3/16"	1"	Mushroom	Stainless Steel	Plain	100/Box	$71.00
POW 06603	Tamper-Proof Pin Anchor	3/16"	1-1/4"	Mushroom	Stainless Steel	Plain	100/Box	$77.05
POW 06604	Tamper-Proof Pin Anchor	3/16"	1-1/2"	Mushroom	Stainless Steel	Plain	100/Box	$95.95
POW 06606	Tamper-Proof Pin Anchor	3/16"	2"	Mushroom	Stainless Steel	Plain	100/Box	$101.00
POW 06623	Tamper-Proof Pin Anchor	1/4"	1-1/4"	Mushroom	Stainless Steel	Plain	100/Box	$151.80
POW 06624	Tamper-Proof Pin Anchor	1/4"	1-1/2"	Mushroom	Stainless Steel	Plain	100/Box	$123.80
POW 06626	Tamper-Proof Pin Anchor	1/4"	2"	Mushroom	Stainless Steel	Plain	100/Box	$129.65
POW 06628	Tamper-Proof Pin Anchor	1/4"	2-1/2"	Mushroom	Stainless Steel	Plain	100/Box	$136.05
POW 06630	Tamper-Proof Pin Anchor	1/4"	3"	Mushroom	Stainless Steel	Plain	100/Box	$194.05
POW 06646	Tamper-Proof Pin Anchor	3/8"	2"	Mushroom	Stainless Steel	Plain	25/Box	$86.63
POW 06648	Tamper-Proof Pin Anchor	3/8"	2-1/2"	Mushroom	Stainless Steel	Plain	25/Box	$91.45
POW 06650	Tamper-Proof Pin Anchor	3/8"	3"	Mushroom	Stainless Steel	Plain	25/Box	$93.45
POW 05502	Tamper-Proof Pin Anchor	3/16"	1"	Mushroom	Carbon Steel	Zinc	100/Box	$19.80
POW 05503	Tamper-Proof Pin Anchor	3/16"	1-1/4"	Mushroom	Carbon Steel	Zinc	100/Box	$22.80
POW 05504	Tamper-Proof Pin Anchor	3/16"	1-1/2"	Mushroom	Carbon Steel	Zinc	100/Box	$23.75

Displaying 15 of 39 Products

SKU	Product Type	Diameter	Length	Head Type	Material	Finish	Pieces Per Unit	Price
POW 03794	Tamper-Proof Pin Anchor	1/4"	2-3/4"	Forming	Carbon Steel	Zinc	100/Box	$60.15
POW 03795	Tamper-Proof Pin Anchor	3/16"	1-1/2"	Forming	Carbon Steel	Zinc	100/Box	$43.05
POW 03796	Tamper-Proof Pin Anchor	3/16"	2"	Forming	Carbon Steel	Zinc	100/Box	$60.10
POW 03797	Tamper-Proof Pin Anchor	3/16"	2-3/4"	Forming	Carbon Steel	Zinc	100/Box	$70.05

Displaying 4 of 4 Products
