BoxBolt®

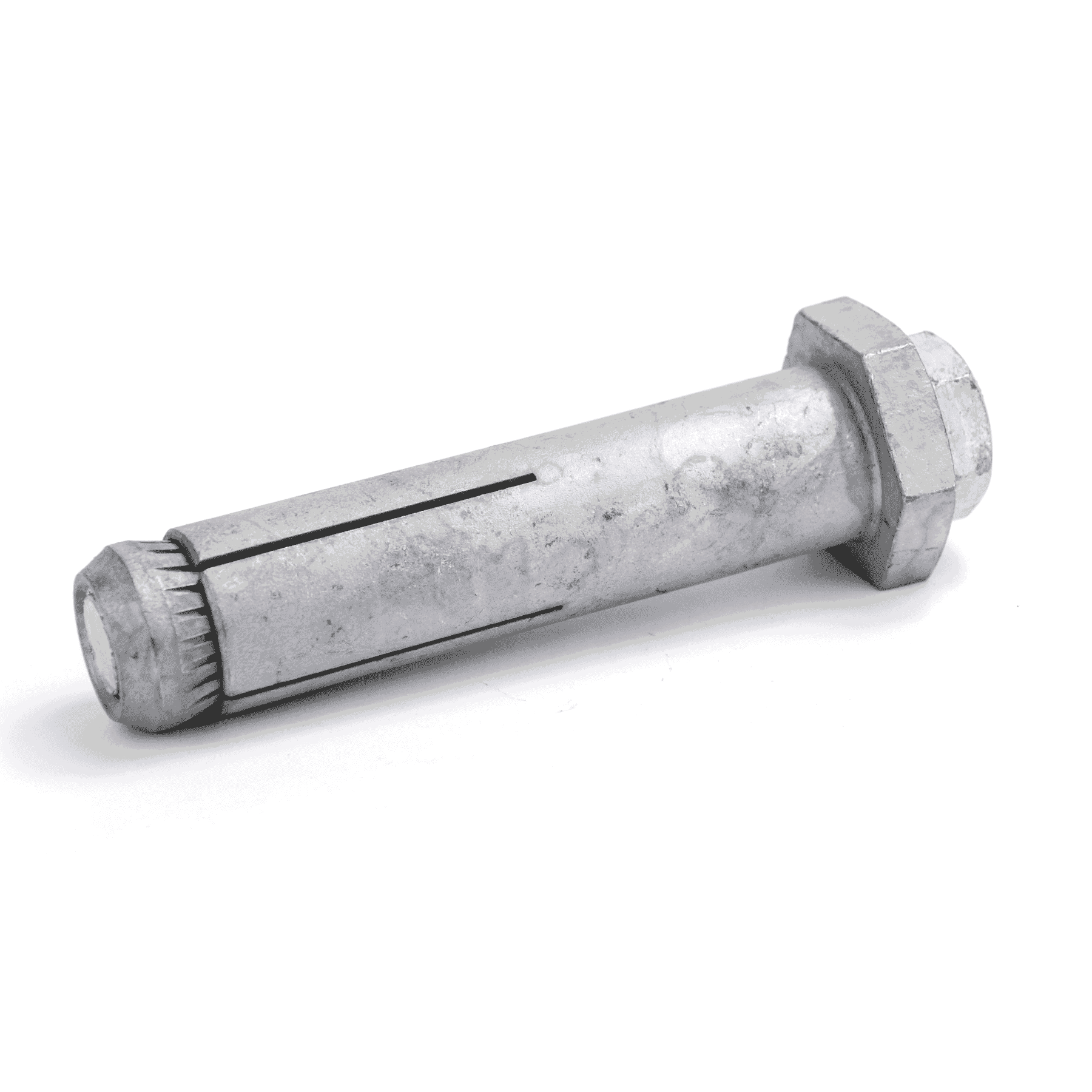

5/16" BoxBolt® Expansion Anchor for Steel Applications, 2-3/4" Screw Length, 9/16" Hole Diameter, Size 2, Hot Dipped Galvanized
BQ2G08
Available to Order
$1902.50 /Box
(50/Box)
BoxBolt® Blind Fastening for Fast, Simple Connection to Hollow Steel
Advantages BoxBolt® Expansion Anchors
- Simple connections to round, rectangular and square sections
- Guaranteed Safe Working Load
- 5:1 Factor of Safety
- No close tolerance holes required
- Only standard hand tools required
- Available in mild steel, zinc plated, or hot dip galvanized, and stainless steel
- Large, combined material clamping range
- Custom Tamper-Resistant BoxBolt® and special lengths available
Specifications
General
- Product Type
- Blind Bolt
- UOM
- BX
- Unit Size
- 50
- Pieces Per Unit
- 50/BX
- Weight
- 0.000000
- Product Brand
- BoxBolt®
- Product Sub Brand
- The Original Boxbolt®
- MPN
- BQ2G08
Technical
- Diameter
- 5/16"
- Length
- 2-3/4"
- Material
- Carbon Steel
- Finish
- Hot Dip Galvanized
- Hole Size
- 9/16"
- Tensile Strength
- 5071
- Clamping Range Max
- 1-13/16"
- Clamping Range Min
- 11/16"
- Set Screw Length
- 2-3/4"
- Shear (lbf)
- 5917
- Shoulder Thickness
- 1/4"
- Tensile (lbf)
- 5071
- Torque (lbs)
- 18
- Width Across Flats of Shoulder
- 7/8"
- Sleeve Dia.
- 1/2"
- Cordless
- No
Compliance
- DFAR Compliant
- No
- QSLD Compliant
- No
