Twist Drills

A twist drill is a cutting tool designed to create new holes. The most common type of twist drill is referred to as a jobber length drill bit. Twist drill bits bore holes in steel, wood and plastic using cutting edges and flutes that remove chips and shavings from the workpiece. Most are manufactured from high-speed steel, with either a 118° or 135° point.

Twist Drills / Twist Bits: Rotary Cutting Tools Ideal for Creating New Holes

Pilot Holes

Split point drills eliminate the need for pilot holes because the drills are designed to self-center
Champion highly recommends using a split point drill in portable, handheld drilling applications
If a pilot hole is necessary for the application, drill the smallest hole possible so that only the larger drill’s point engages the material

118° Point

General Purpose Use Not Self-Centering
Ideal For Use In Stationary Drill Press For Drilling
Softer Materials Like Wood, Aluminum, and Low To Medium Steel Alloys

135° Split Point

Drill Harder Steel Alloys - Self-Centering
Ideal For Use In Handheld Power Drill
Requires Less Operator Force Than 118° Point Drills

Anatomy & Nomenclature of Twist Drills

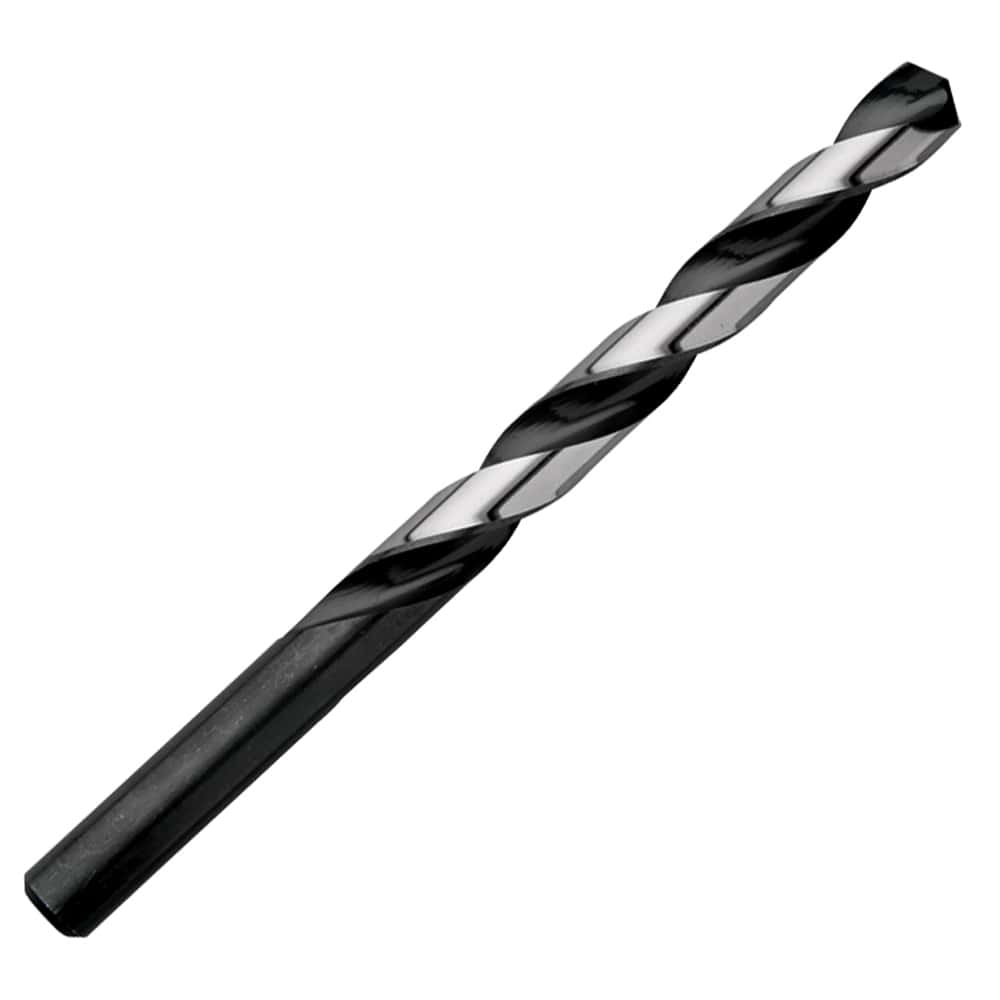

Brute XL5 Jobber Drills

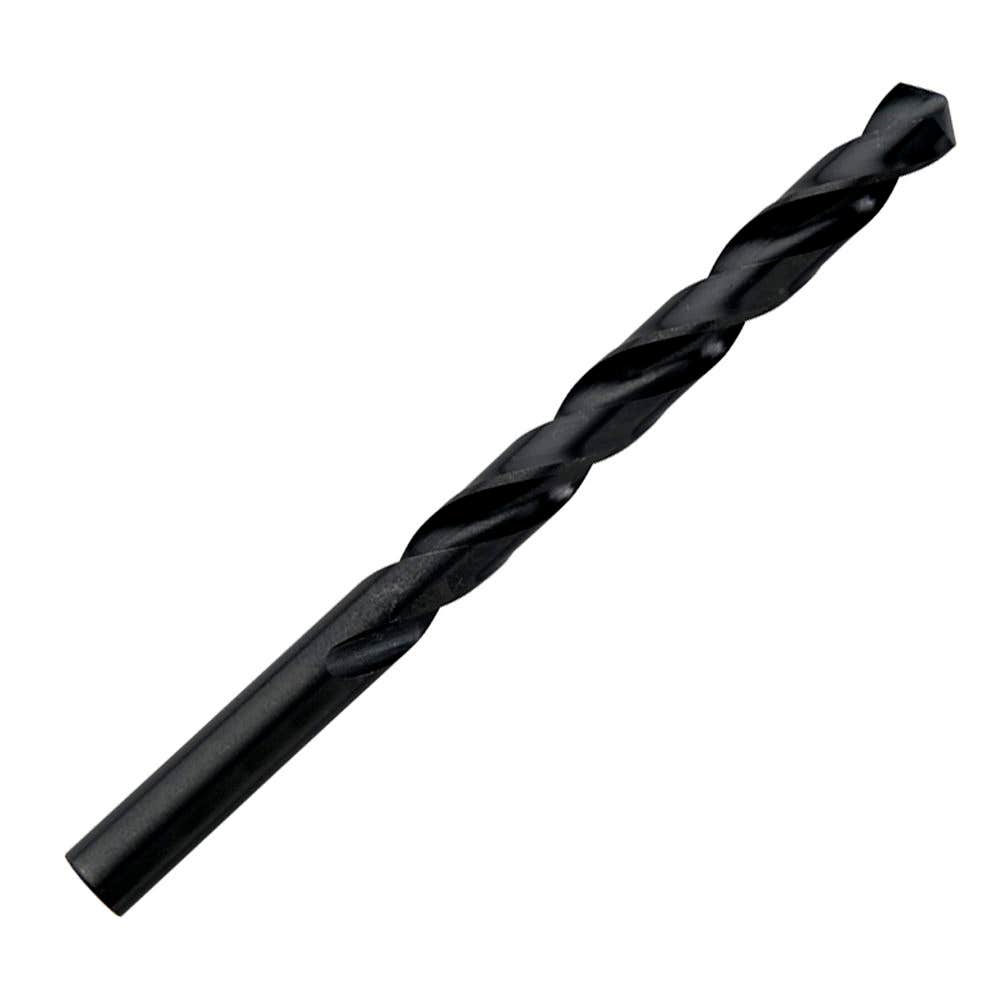

705 General Purpose Jobber Drills

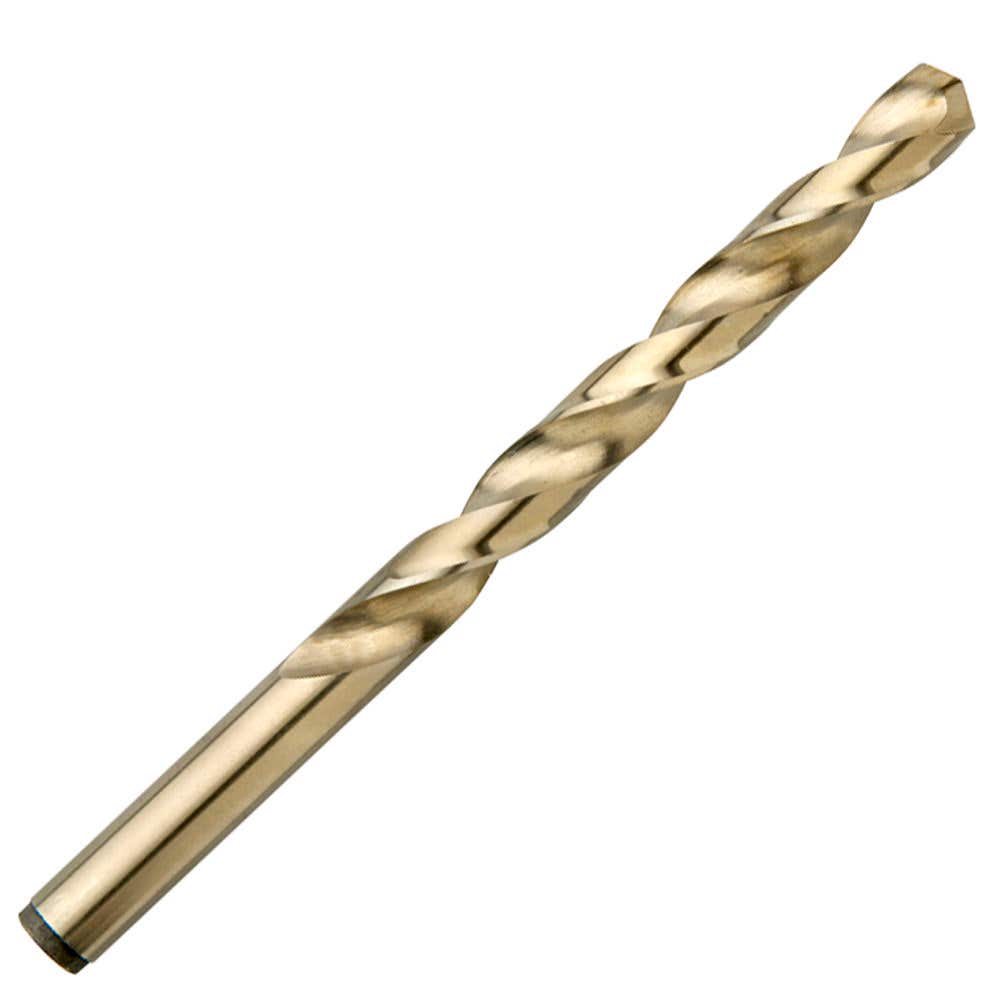

705C Cobalt Jobber Drills

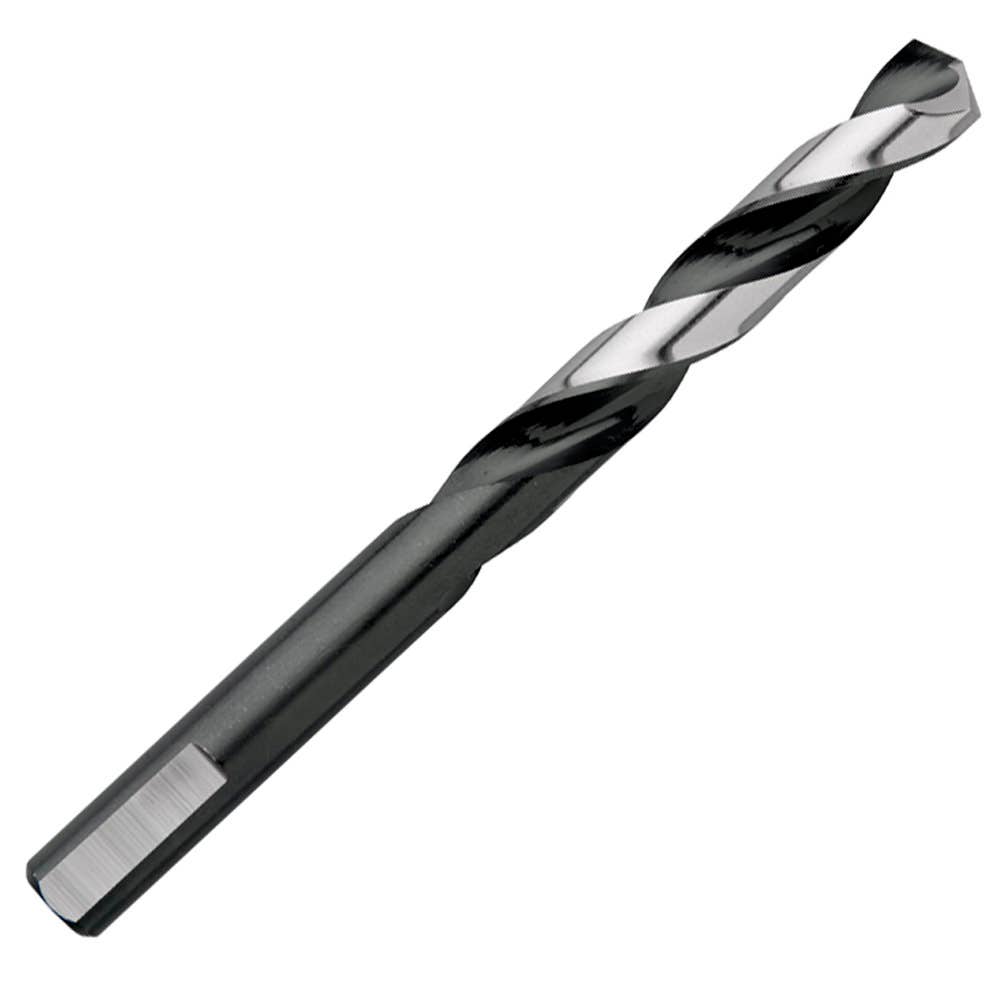

Brute XL28 Mechanics Length Drills

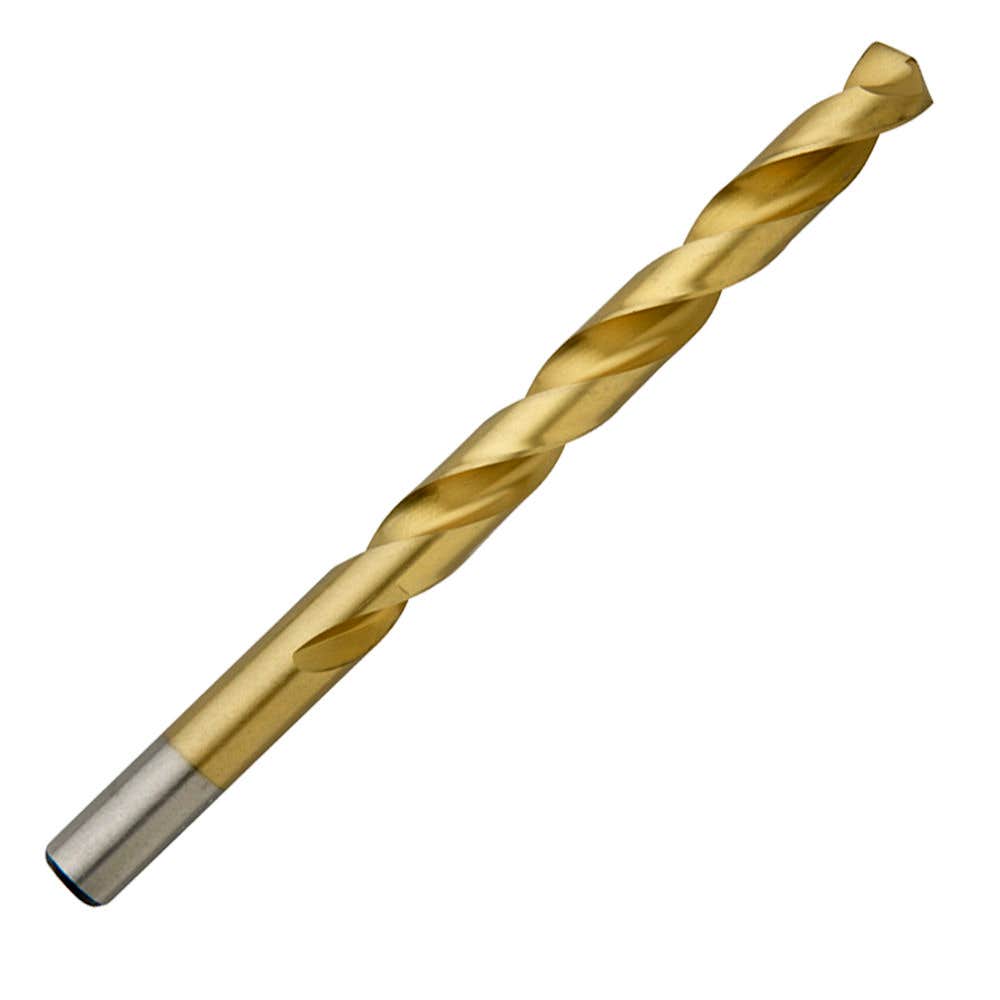

700T Tin Coated Jobber Drills

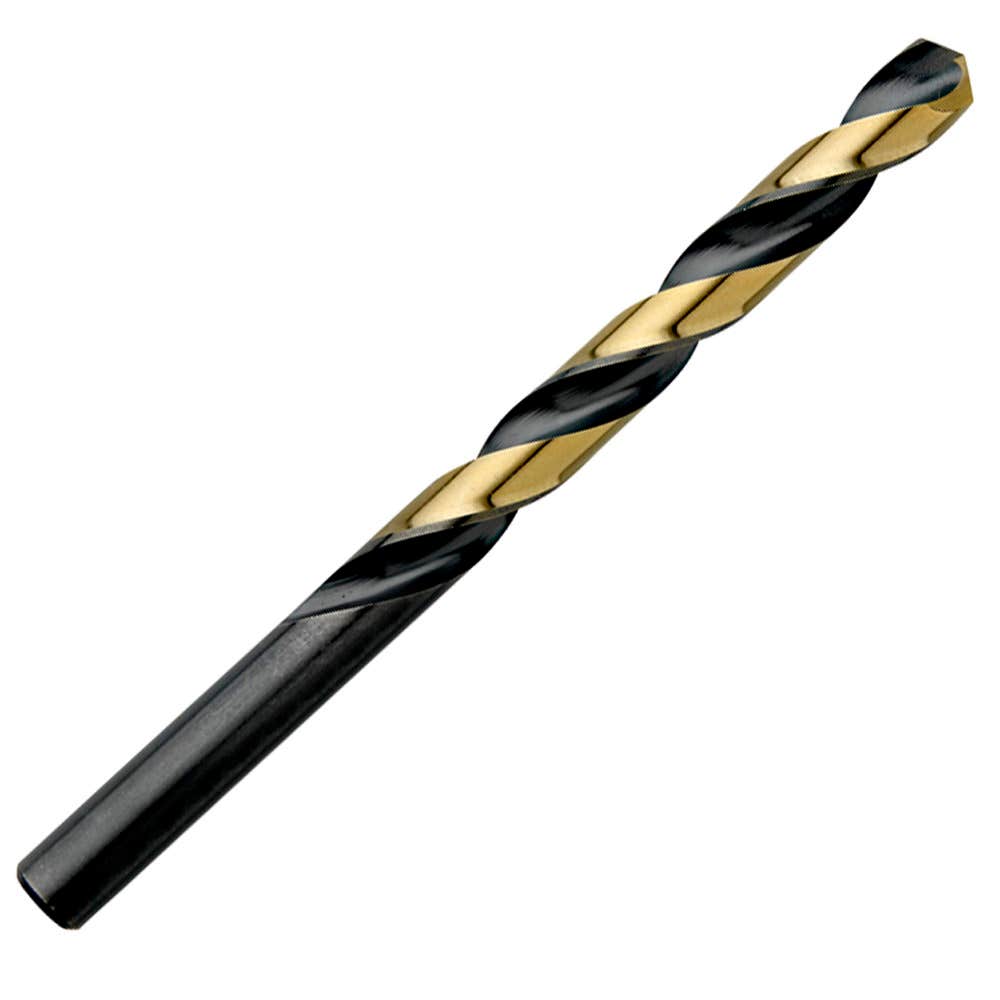

XGO BlackGold® Jobber Drills

705SP Split Point Jobber Drills

USHD Split Point Jobber Drills

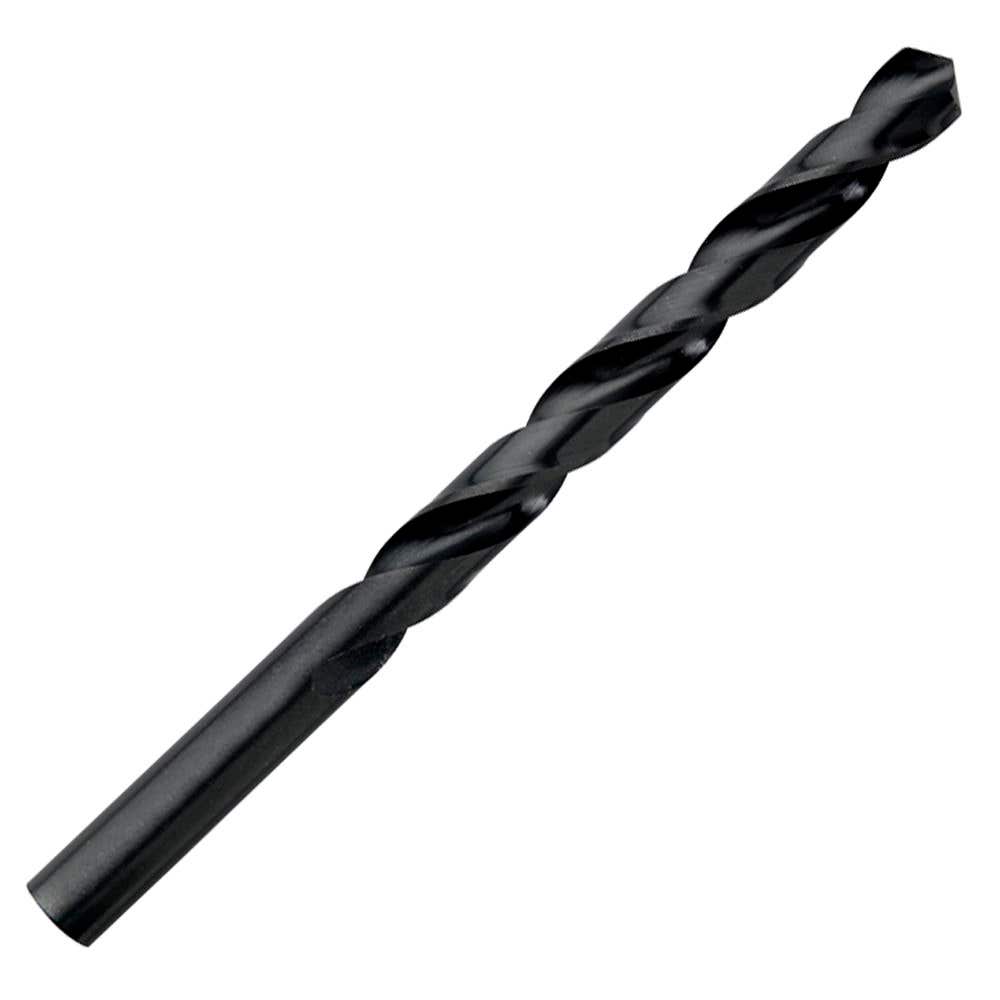

US5 General Purpose Jobber Drills

Multi-Purpose Drill Bits (MPB)

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA TWISTER-XGO	Jobber Drill Set		Fractional				1/EA	$205.40
CHA TWISTER-XL28	Mechanics Length Drill		Fractional				1/EA	$208.65
CHA TWISTER-XL5	Jobber Drill Set		Fractional				1/EA	$128.75
CHA XL5-A	Jobber Drill Heavy Duty	A	Letter	0.2340	2-5/8	3-7/8	12/Box	$67.80
CHA XL5-B	Jobber Drill Heavy Duty	B	Letter	0.2380	2-3/4	4	12/Box	$67.80
CHA XL5-C	Jobber Drill Heavy Duty	C	Letter	0.2420	2-3/4	4	12/Box	$67.80
CHA XL5-D	Jobber Drill Heavy Duty	D	Letter	0.2460	2-3/4	4	12/Box	$64.80
CHA XL5-E	Jobber Drill Heavy Duty	E	Letter	0.2500	2-3/4	4	12/Box	$57.60
CHA XL5-F	Jobber Drill Heavy Duty	F	Letter	0.2570	2-7/8	4-1/8	12/Box	$70.80
CHA XL5-G	Jobber Drill Heavy Duty	G	Letter	0.2610	2-7/8	4-1/8	12/Box	$78.60
CHA XL5-H	Jobber Drill Heavy Duty	H	Letter	0.2660	2-7/8	4-1/8	12/Box	$80.40
CHA XL5-I	Jobber Drill Heavy Duty	I	Letter	0.2720	2-7/8	4-1/8	12/Box	$80.40
CHA XL5-J	Jobber Drill Heavy Duty	J	Letter	0.2770	2-7/8	4-1/8	12/Box	$84.60
CHA XL5-K	Jobber Drill Heavy Duty	K	Letter	0.2810	2-5/16	4-14	12/Box	$94.80
CHA XL5-L	Jobber Drill Heavy Duty	L	Letter	0.2900	2-5/16	4-1/4	12/Box	$91.20

Displaying 15 of 111 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA 705-1	Jobber Drill General Purpose	#1	Number	0.2280	2-5/8	3-7/8	12/Box	$40.20
CHA 705-2	Jobber Drill General Purpose	#2	Number	0.2210	2-5/8	3-7/8	12/Box	$38.40
CHA 705-3	Jobber Drill General Purpose	#3	Number	0.2130	2-1/2	3-3/4	12/Box	$36.60
CHA 705-4	Jobber Drill General Purpose	#4	Number	0.2090	2-1/2	3-3/4	12/Box	$36.60
CHA 705-5	Jobber Drill General Purpose	#5	Number	0.2055	2-1/2	3-3/4	12/Box	$36.60
CHA 705-6	Jobber Drill General Purpose	#6	Number	0.2040	2-1/2	3-3/4	12/Box	$34.80
CHA 705-7	Jobber Drill General Purpose	#7	Number	0.2010	2-7/16	3-5/8	12/Box	$30.00
CHA 705-8	Jobber Drill General Purpose	#8	Number	0.1990	2-7/16	3-5/8	12/Box	$31.20
CHA 705-9	Jobber Drill General Purpose	#9	Number	0.1960	2-7/16	3-5/8	12/Box	$31.20
CHA 705-10	Jobber Drill General Purpose	#10	Number	0.1935	2-7/16	3-5/8	12/Box	$31.20
CHA 705-11	Jobber Drill General Purpose	#11	Number	0.1910	2-5/16	3-1/2	12/Box	$29.40
CHA 705-12	Jobber Drill General Purpose	#12	Number	0.1890	2-5/16	3-1/2	12/Box	$29.40
CHA 705-13	Jobber Drill General Purpose	#13	Number	0.1850	2-5/16	3-1/2	12/Box	$28.20
CHA 705-14	Jobber Drill General Purpose	#14	Number	0.1820	2-3/16	3-3/8	12/Box	$27.60
CHA 705-15	Jobber Drill General Purpose	#15	Number	0.1800	2-3/16	3-3/8	12/Box	$27.60

Displaying 15 of 148 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA 705C-1	Jobber Drill Cobalt	#1	Number	0.2280	2-5/8	3-7/8	12/Box	$86.40
CHA 705C-2	Jobber Drill Cobalt	#2	Number	0.2210	2-5/8	3-7/8	12/Box	$86.40
CHA 705C-3	Jobber Drill Cobalt	#3	Number	0.2130	2-1/2	3-3/4	12/Box	$87.00
CHA 705C-4	Jobber Drill Cobalt	#4	Number	0.2090	2-1/2	3-3/4	12/Box	$91.20
CHA 705C-5	Jobber Drill Cobalt	#5	Number	0.2055	2-1/2	3-3/4	12/Box	$82.20
CHA 705C-6	Jobber Drill Cobalt	#6	Number	0.2040	2-1/2	3-3/4	12/Box	$82.20
CHA 705C-7	Jobber Drill Cobalt	#7	Number	0.2010	2-7/16	3-5/8	12/Box	$66.60
CHA 705C-8	Jobber Drill Cobalt	#8	Number	0.1990	2-7/16	3-5/8	12/Box	$68.40
CHA 705C-9	Jobber Drill Cobalt	#9	Number	0.1960	2-7/16	3-5/8	12/Box	$72.60
CHA 705C-10	Jobber Drill Cobalt	#10	Number	0.1935	2-7/16	3-5/8	12/Box	$68.40
CHA 705C-11	Jobber Drill Cobalt	#11	Number	0.1910	2-5/16	3-1/2	12/Box	$68.40
CHA 705C-12	Jobber Drill Cobalt	#12	Number	0.1890	2-5/16	3-1/2	12/Box	$68.40
CHA 705C-13	Jobber Drill Cobalt	#13	Number	0.1850	2-5/16	3-1/2	12/Box	$64.80
CHA 705C-14	Jobber Drill Cobalt	#14	Number	0.1820	2-3/16	3-3/8	12/Box	$64.80
CHA 705C-15	Jobber Drill Cobalt	#15	Number	0.1800	2-3/16	3-3/8	12/Box	$64.80

Displaying 15 of 138 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA XL28-1/16	Mechanics Length Drill	1/16"	Fractional	0.0625	7/8	1-7/8	12/Box	$27.00
CHA XL28-1/2	Mechanics Length Drill	1/2"	Fractional	0.5000	3-3/8	5	6/Box	$101.40
CHA XL28-1/4	Mechanics Length Drill	1/4"	Fractional	0.2500	2	3-1/2	12/Box	$52.20
CHA XL28-1/8	Mechanics Length Drill	1/8"	Fractional	0.1250	1-7/16	2-1/2	12/Box	$28.20
CHA XL28-11/32	Mechanics Length Drill	11/32"	Fractional	0.3438	2-5/8	4-1/8	6/Box	$45.60
CHA XL28-11/64	Mechanics Length Drill	11/64"	Fractional	0.1719	1-13/16	2-7/8	12/Box	$36.00
CHA XL28-13/32	Mechanics Length Drill	13/32"	Fractional	0.4062	2-13/16	4-3/8	6/Box	$68.70
CHA XL28-13/64	Mechanics Length Drill	13/64"	Fractional	0.2031	1-15/16	3-1/8	12/Box	$45.00
CHA XL28-15/32	Mechanics Length Drill	15/32"	Fractional	0.4688	3-1/8	4-3/4	6/Box	$92.40
CHA XL28-15/64	Mechanics Length Drill	15/64"	Fractional	0.2344	2-1/16	3-3/8	12/Box	$51.60
CHA XL28-17/64	Mechanics Length Drill	17/64"	Fractional	0.2656	2-1/8	3-5/8	12/Box	$61.20
CHA XL28-19/64	Mechanics Length Drill	19/64"	Fractional	0.2969	2-3/8	3-7/8	6/Box	$37.80
CHA XL28-21/64	Mechanics Length Drill	21/64"	Fractional	0.3281	2-9/16	4-1/16	6/Box	$42.00
CHA XL28-23/64	Mechanics Length Drill	23/64"	Fractional	0.3594	2-11/16	4-3/16	6/Box	$49.20
CHA XL28-25/64	Mechanics Length Drill	25/64"	Fractional	0.3906	2-3/4	4-5/16	6/Box	$63.60

Displaying 15 of 30 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA 700T-1/16	Jobber Drill Heavy Duty	1/16"	Fractional	0.0625	7/8	1-7/8	12/Box	$60.00
CHA 700T-5/64	Jobber Drill Heavy Duty	5/64"	Fractional	0.0781	1	2	12/Box	$61.20
CHA 700T-3/32	Jobber Drill Heavy Duty	3/32"	Fractional	0.0938	1-1/8	2-1/4	12/Box	$61.20
CHA 700T-7/64	Jobber Drill Heavy Duty	7/64"	Fractional	0.1094	1-1/2	2-5/8	12/Box	$64.20
CHA 700T-1/8	Jobber Drill Heavy Duty	1/8"	Fractional	0.1250	1-5/8	2-3/4	12/Box	$64.20
CHA 700T-9/64	Jobber Drill Heavy Duty	9/64"	Fractional	0.1406	1-3/4	2-7/8	12/Box	$69.00
CHA 700T-5/32	Jobber Drill Heavy Duty	5/32"	Fractional	0.1562	2	3-1/8	12/Box	$78.60
CHA 700T-11/64	Jobber Drill Heavy Duty	11/64"	Fractional	0.1719	2-1/8	3-1/4	12/Box	$80.40
CHA 700T-3/16	Jobber Drill Heavy Duty	3/16"	Fractional	0.1875	2-5/16	3-1/2	12/Box	$83.40
CHA 700T-13/64	Jobber Drill Heavy Duty	13/64"	Fractional	0.2031	2-7/16	3-5/8	12/Box	$93.00
CHA 700T-7/32	Jobber Drill Heavy Duty	7/32"	Fractional	0.2188	2-1/2	3-3/4	12/Box	$95.40
CHA 700T-15/64	Jobber Drill Heavy Duty	15/64"	Fractional	0.2344	2-5/8	3-7/8	12/Box	$101.40
CHA 700T-1/4	Jobber Drill Heavy Duty	1/4"	Fractional	0.2500	2-3/4	4	12/Box	$101.40
CHA 700T-17/64	Jobber Drill Heavy Duty	17/64"	Fractional	0.2656	2-7/8	4-1/8	12/Box	$139.80
CHA 700T-9/32	Jobber Drill Heavy Duty	9/32"	Fractional	0.2812	2-15/16	4-1/4	12/Box	$141.60

Displaying 15 of 29 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA XGO-1	Jobber Drill Heavy Duty	#1	Number	0.2280	2-5/8	3-7/8	12/Box	$54.60
CHA XGO-1/2	Jobber Drill Heavy Duty	1/2"	Fractional	0.5000	4-1/2	6	6/Box	$90.60
CHA XGO-1/4	Jobber Drill Heavy Duty	1/4"	Fractional	0.2500	2-3/4	4	12/Box	$49.80
CHA XGO-10	Jobber Drill Heavy Duty	#10	Number	0.1935	2-7/16	3-5/8	12/Box	$43.80
CHA XGO-11	Jobber Drill Heavy Duty	#11	Number	0.1910	2-5/16	3-1/2	12/Box	$41.40
CHA XGO-11/32	Jobber Drill Heavy Duty	11/32"	Fractional	0.3438	3-7/16	4-3/4	6/Box	$46.50
CHA XGO-11/64	Jobber Drill Heavy Duty	11/64"	Fractional	0.1719	2-1/8	3-1/4	12/Box	$31.20
CHA XGO-12	Jobber Drill Heavy Duty	#12	Number	0.1890	2-5/16	3-1/2	12/Box	$41.40
CHA XGO-13	Jobber Drill Heavy Duty	#13	Number	0.1850	2-5/16	3-1/2	12/Box	$40.20
CHA XGO-13/32	Jobber Drill Heavy Duty	13/32"	Fractional	0.4062	3-7/8	5-1/4	6/Box	$63.30
CHA XGO-13/64	Jobber Drill Heavy Duty	13/64"	Fractional	0.2031	2-7/16	3-5/8	12/Box	$41.40
CHA XGO-14	Jobber Drill Heavy Duty	#14	Number	0.1820	2-3/16	3-3/8	12/Box	$40.20
CHA XGO-15	Jobber Drill Heavy Duty	#15	Number	0.1800	2-3/16	3-3/8	12/Box	$40.20
CHA XGO-15/32	Jobber Drill Heavy Duty	15/32"	Fractional	0.4688	4-5/16	5-3/4	6/Box	$87.60
CHA XGO-15/64	Jobber Drill Heavy Duty	15/64"	Fractional	0.2344	2-5/8	3-7/8	12/Box	$46.20

Displaying 15 of 115 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA 705SP-1	Jobber Drill Heavy Duty	#1	Number	0.2280	2-5/8	3-7/8	12/Box	$43.80
CHA 705SP-2	Jobber Drill Heavy Duty	#2	Number	0.2210	2-5/8	3-7/8	12/Box	$48.00
CHA 705SP-3	Jobber Drill Heavy Duty	#3	Number	0.2130	2-1/2	3-3/4	12/Box	$48.00
CHA 705SP-4	Jobber Drill Heavy Duty	#4	Number	0.2090	2-1/2	3-3/4	12/Box	$46.80
CHA 705SP-5	Jobber Drill Heavy Duty	#5	Number	0.2055	2-1/2	3-3/4	12/Box	$46.80
CHA 705SP-6	Jobber Drill Heavy Duty	#6	Number	0.2040	2-1/2	3-3/4	12/Box	$46.80
CHA 705SP-7	Jobber Drill Heavy Duty	#7	Number	0.2010	2-7/16	3-5/8	12/Box	$36.60
CHA 705SP-8	Jobber Drill Heavy Duty	#8	Number	0.1990	2-7/16	3-5/8	12/Box	$38.40
CHA 705SP-9	Jobber Drill Heavy Duty	#9	Number	0.1960	2-7/16	3-5/8	12/Box	$38.40
CHA 705SP-10	Jobber Drill Heavy Duty	#10	Number	0.1935	2-7/16	3-5/8	12/Box	$38.40
CHA 705SP-11	Jobber Drill Heavy Duty	#11	Number	0.1910	2-5/16	3-1/2	12/Box	$34.20
CHA 705SP-12	Jobber Drill Heavy Duty	#12	Number	0.1890	2-5/16	3-1/2	12/Box	$36.60
CHA 705SP-13	Jobber Drill Heavy Duty	#13	Number	0.1850	2-5/16	3-1/2	12/Box	$36.60
CHA 705SP-14	Jobber Drill Heavy Duty	#14	Number	0.1820	2-3/16	3-3/8	12/Box	$36.60
CHA 705SP-15	Jobber Drill Heavy Duty	#15	Number	0.1800	2-3/16	3-3/8	12/Box	$36.60

Displaying 15 of 114 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA USHD-1	Jobber Drill Heavy Duty	#1	Number	0.2280	2-5/8	3-7/8	12/Box	$43.80
CHA USHD-2	Jobber Drill Heavy Duty	#2	Number	0.2210	2-5/8	3-7/8	12/Box	$43.80
CHA USHD-3	Jobber Drill Heavy Duty	#3	Number	0.2130	2-1/2	3-3/4	12/Box	$39.60
CHA USHD-4	Jobber Drill Heavy Duty	#4	Number	0.2090	2-1/2	3-3/4	12/Box	$39.60
CHA USHD-5	Jobber Drill Heavy Duty	#5	Number	0.2055	2-1/2	3-3/4	12/Box	$39.60
CHA USHD-6	Jobber Drill Heavy Duty	#6	Number	0.2040	2-1/2	3-3/4	12/Box	$39.60
CHA USHD-7	Jobber Drill Heavy Duty	#7	Number	0.2010	2-7/16	3-5/8	12/Box	$34.20
CHA USHD-8	Jobber Drill Heavy Duty	#8	Number	0.1990	2-7/16	3-5/8	12/Box	$36.60
CHA USHD-9	Jobber Drill Heavy Duty	#9	Number	0.1960	2-7/16	3-5/8	12/Box	$36.60
CHA USHD-10	Jobber Drill Heavy Duty	#10	Number	0.1935	2-7/16	3-5/8	12/Box	$35.40
CHA USHD-11	Jobber Drill Heavy Duty	#11	Number	0.1910	2-5/16	3-1/2	12/Box	$33.00
CHA USHD-12	Jobber Drill Heavy Duty	#12	Number	0.1890	2-5/16	3-1/2	12/Box	$33.00
CHA USHD-13	Jobber Drill Heavy Duty	#13	Number	0.1850	2-5/16	3-1/2	12/Box	$31.80
CHA USHD-14	Jobber Drill Heavy Duty	#14	Number	0.1820	2-3/16	3-3/8	12/Box	$31.80
CHA USHD-15	Jobber Drill Heavy Duty	#15	Number	0.1800	2-3/16	3-3/8	12/Box	$31.80

Displaying 15 of 115 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA US5-1/16	Jobber Drill General Purpose	1/16"	Fractional	0.0625	7/8	1-7/8	12/Box	$13.20
CHA US5-5/64	Jobber Drill General Purpose	5/64"	Fractional	0.0781	1	2	12/Box	$13.20
CHA US5-3/32	Jobber Drill General Purpose	3/32"	Fractional	0.0938	1-1/8	2-1/4	12/Box	$15.00
CHA US5-7/64	Jobber Drill General Purpose	7/64"	Fractional	0.1094	1-1/2	2-5/8	12/Box	$15.00
CHA US5-1/8	Jobber Drill General Purpose	1/8"	Fractional	0.1250	1-5/8	2-3/4	12/Box	$16.80
CHA US5-9/64	Jobber Drill General Purpose	9/64"	Fractional	0.1406	1-3/4	2-7/8	12/Box	$17.28
CHA US5-5/32	Jobber Drill General Purpose	5/32"	Fractional	0.1562	2	3-1/8	12/Box	$18.96
CHA US5-11/64	Jobber Drill General Purpose	11/64"	Fractional	0.1719	2-1/8	3-1/4	12/Box	$19.80
CHA US5-3/16	Jobber Drill General Purpose	3/16"	Fractional	0.1875	2-5/16	3-1/2	12/Box	$21.60
CHA US5-13/64	Jobber Drill General Purpose	13/64"	Fractional	0.2031	2-7/16	3-5/8	12/Box	$25.80
CHA US5-7/32	Jobber Drill General Purpose	7/32"	Fractional	0.2188	2-1/2	3-3/4	12/Box	$27.60
CHA US5-15/64	Jobber Drill General Purpose	15/64"	Fractional	0.2344	2-5/8	3-7/8	12/Box	$30.00
CHA US5-1/4	Jobber Drill General Purpose	1/4"	Fractional	0.2500	2-3/4	4	12/Box	$31.80
CHA US5-17/64	Jobber Drill General Purpose	17/64"	Fractional	0.2656	2-7/8	4-1/8	12/Box	$39.00
CHA US5-9/32	Jobber Drill General Purpose	9/32"	Fractional	0.2812	2-15/16	4-1/4	12/Box	$45.60

Displaying 15 of 115 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Pieces Per Unit	Price
CHA CM-MPB-1/4X6	Multi-Purpose Drill Bit	1/4"	Fractional	0.2500	1/EA	$9.05
CHA CM-MPB-3/16	Multi-Purpose Drill Bit	3/16"	Fractional	0.1875	1/EA	$6.35
CHA CM-MPB-1/2	Multi-Purpose Drill Bit	1/2"	Fractional	0.5000	1/EA	$14.30
CHA CM-MPB-1/4	Multi-Purpose Drill Bit	1/4"	Fractional	0.2500	1/EA	$7.20
CHA CM-MPB-1/8	Multi-Purpose Drill Bit	1/8"	Fractional	0.1250	1/EA	$6.05
CHA CM-MPB-3/16X6	Multi-Purpose Drill Bit	3/16"	Fractional	0.1875	1/EA	$8.70
CHA CM-MPB-3/8	Multi-Purpose Drill Bit	3/8"	Fractional	0.3750	1/EA	$10.55
CHA CM-MPB-5/16	Multi-Purpose Drill Bit	5/16"	Fractional	0.3125	1/EA	$9.80
CHA CM-MPB-5/32	Multi-Purpose Drill Bit	5/32"	Fractional	0.15625	1/EA	$6.25
CHA CM-MPB-SET7	Multi-Purpose Drill Bit	Set	Fractional		1/EA	$71.75

Displaying 10 of 10 Products

<div class="schemaQA"> <div itemscope itemtype="https://schema.org/FAQPage"> <div itemscope itemprop="mainEntity" itemtype="https://schema.org/Question"> <h2 itemprop="name" style="font-size:15px">What Is A Jobber Drill?</h2> <div itemscope itemprop="acceptedAnswer" itemtype="https://schema.org/Answer"> <div itemprop="text"> A jobber drill bit has a long length compared to its diameter. The length of the flute is between 8-12 or 9-14 times the diameter of the drill, depending on the drill specifications. For example, a 1/2″ diameter jobber drill will be able to drill a 4-1/2″ deep hole because it is 9 times the diameter in length. <a href="https://resources.tannerbolt.com/articles/what-is-a-jobber-drill">Learn More about Jobber Drill Bits</a> </div> </div> </div> </div></div>
