Taper Shank / Taper Length Drills

Taper shank drills are ideal for drilling using machinery that has a taper shank socket and/or arbor or in lathes and screw machine applications. The taper shank length drills are engineered to have approximately the same overall flute length as taper shank drills and are longer than standard Jobber drills.

Taper Shank Drills Light and Medium Duty Bits

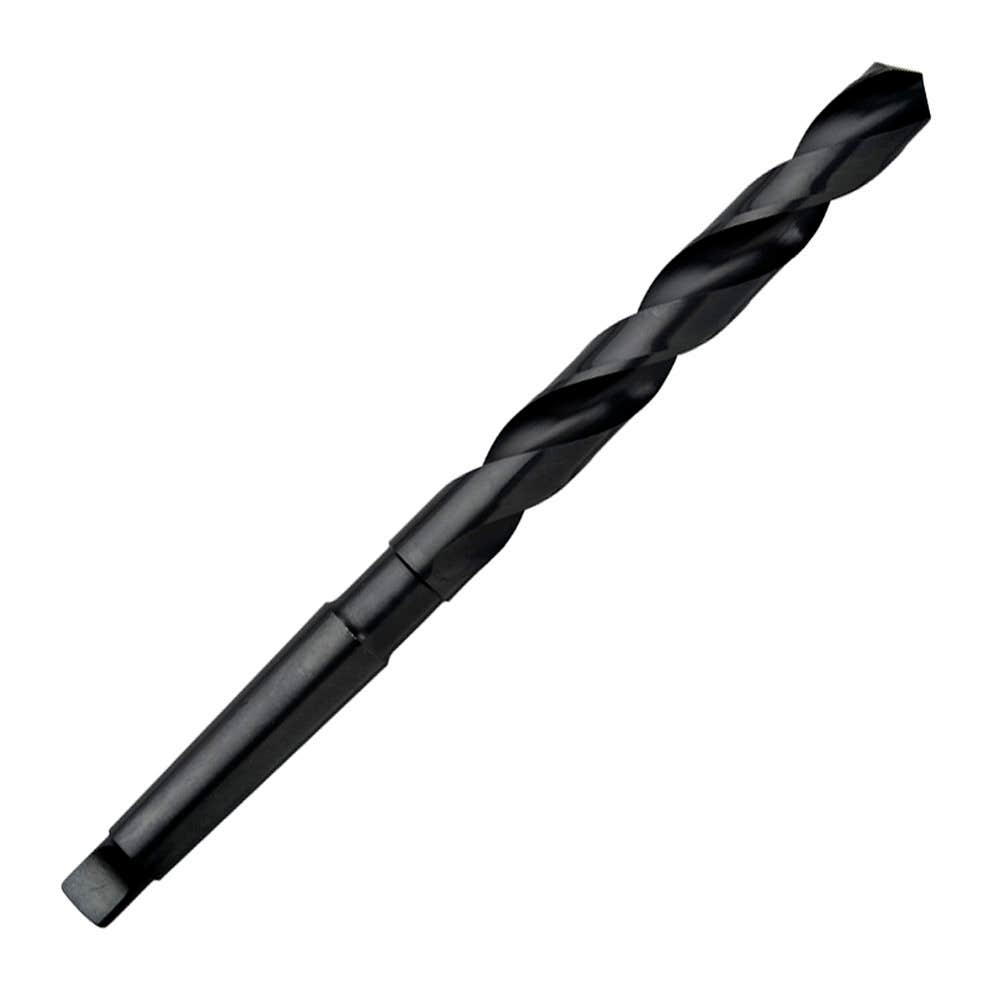

Taper Shank Drills, 702

Taper Length Drills, 704

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA 702-1/2	Taper Shank Drill	1/2"	Fractional	0.5000	4-5/8	8-1/4	1/EA	$48.25
CHA 702-9/16	Taper Shank Drill	9/16"	Fractional	0.5625	4-7/8	8-3/4	1/EA	$52.40
CHA 702-5/8	Taper Shank Drill	5/8"	Fractional	0.6250	5-1/8	8-3/4	1/EA	$57.33
CHA 702-11/16	Taper Shank Drill	11/16"	Fractional	0.6875	5-5/8	9-1/4	1/EA	$66.63
CHA 702-3/4	Taper Shank Drill	3/4"	Fractional	0.7500	'6	9-3/4	1/EA	$77.61
CHA 702-13/16	Taper Shank Drill	13/16"	Fractional	0.8125	6-1/8	10-3/4	1/EA	$90.27
CHA 702-7/8	Taper Shank Drill	7/8"	Fractional	0.8750	6-1/8	10-3/4	1/EA	$105.10
CHA 702-15/16	Taper Shank Drill	15/16"	Fractional	0.9375	6-3/8	10-3/4	1/EA	$107.83
CHA 702-1	Taper Shank Drill	1"	Fractional	1.0000	6-1/2	11	1/EA	$120.64

Displaying 9 of 9 Products

SKU	Product Type	Diameter	Size Type	Decimal Equiv.	Flute Length	Overall Length	Pieces Per Unit	Price
CHA 704-1/8	Taper Length Drill	1/8"	Fractional	0.1250	3	5-1/8	6/Box	$63.48
CHA 704-3/16	Taper Length Drill	3/16"	Fractional	0.1875	3-5/8	5-3/4	6/Box	$61.56
CHA 704-1/4	Taper Length Drill	1/4"	Fractional	0.2500	3-7/8	6-1/8	6/Box	$71.88
CHA 704-5/16	Taper Length Drill	5/16"	Fractional	0.3125	4	6-3/8	3/Box	$44.07
CHA 704-3/8	Taper Length Drill	3/8"	Fractional	0.3750	4-1/4	6-3/4	3/Box	$59.13
CHA 704-7/16	Taper Length Drill	7/16"	Fractional	0.4375	4-5/8	7-1/4	3/Box	$76.20
CHA 704-1/2	Taper Length Drill	1/2"	Fractional	0.5000	4-3/4	7-3/4	3/Box	$85.11

Displaying 7 of 7 Products
