DeWalt

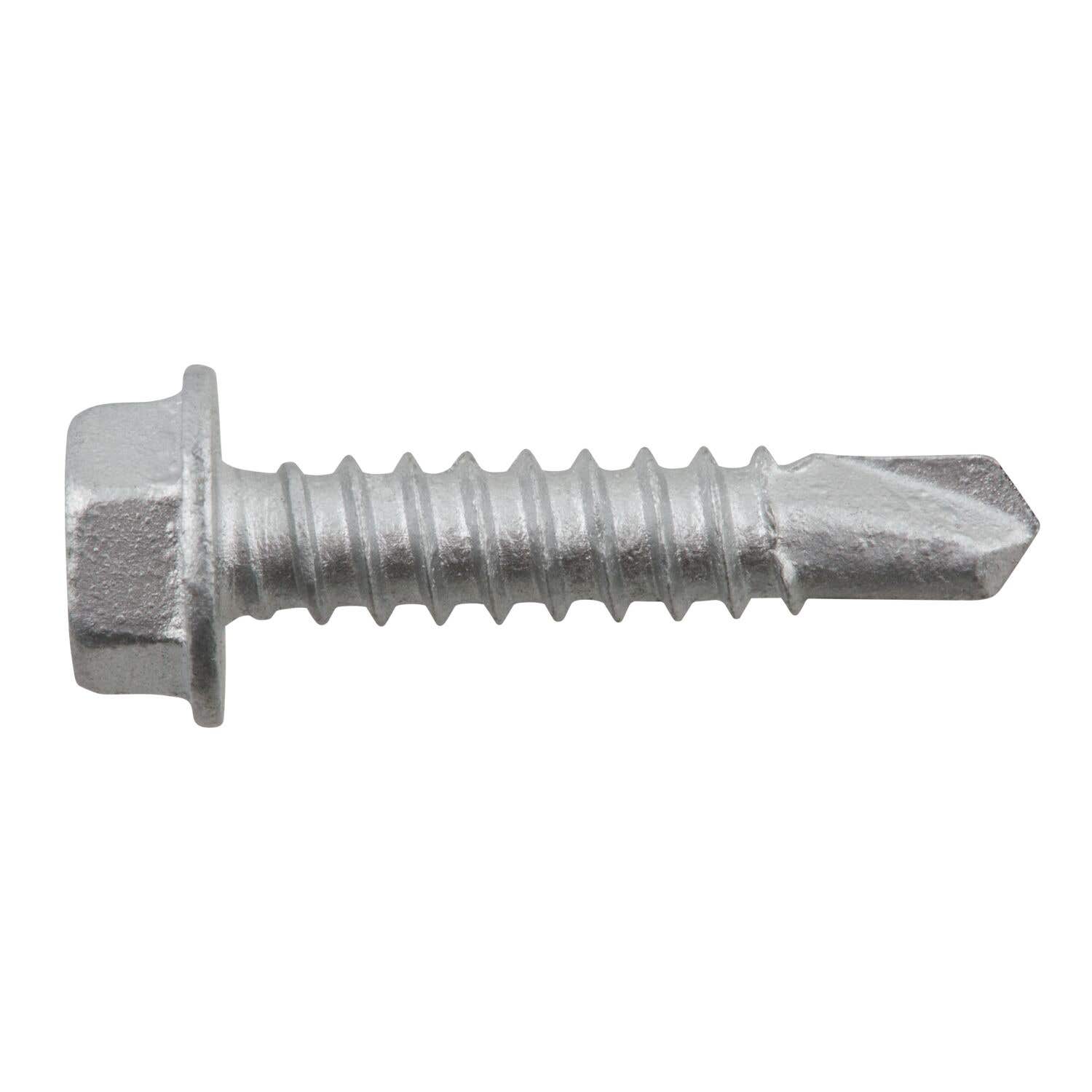

#8-18 x 3/4" Bi-Flex 300 Series Bi-Metal Self-Drilling Screws, 5/16" Hex Washer Head, #2 Point, Hardened Steel Tapping Threads and Point, 18-8 Stainless Steel Head and Shank with Stalgard GB Coating
DEW DFSEAJ100
Available to Order
$1735.00 /Box
(5000/Box)
Specifications
General
- Product Type
- Self-Drilling Screw
- UOM
- BX
- Unit Size
- 5000
- Pieces Per Unit
- 5000/BX
- Weight
- 23.000000
- Product Brand
- DeWalt
- Product Sub Brand
- Bi-Flex®
- MPN
- DFSEAJ100
- UPC
- 662963000444
Technical
- Diameter
- #8
- Length
- 3/4"
- Material
- Stainless Steel
- Steel Grade
- 18-8
- Finish
- Stalgard® GB
- Drive Type
- Hex
- Head Dia.
- 0.335"
- Head Size
- 5/16"
- Head Type
- Hex Washer
- Point Size
- #2
- Point Type
- Self-Drill
- TPI
- 18
- Thread Size
- #8-18
- Max Load Bearing Length
- 0.156"
- Head-Height
- 0.14"
- Driver Size
- 5/16"
- Shank Dia
- #8
- Min Protrusion Length
- 19/32"
- Drive Size
- 6854
- Washer Type
- Integrated Washer
- Cordless
- No
Compliance
- DFAR Compliant
- No
- QSLD Compliant
- No
APPROVALS & LISTING
- International Code Council, Evaluation Service (ICC-ES), ESR-4367
- International Code Council, Evaluation Service (ICC-ES), ESR-4374
- Code compliant with the International Building Code/International Residential Code:2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC and 2012 IBC/IRC
- 2020 Los Angeles Building Code (LABC) and Los Angeles Residential Code (LARC) ICC-ES Report Supplement
- 2020 Florida Building Code (FBC) ICC-ES Report Supplement
- Tested in accordance with AISI S905 and ICC-ES AC500 for attaching Miscellaneous Building Materials to Steel
- Tested in accordance with ICC-ES AC491 for use in Aluminum
