Elco Construction Products

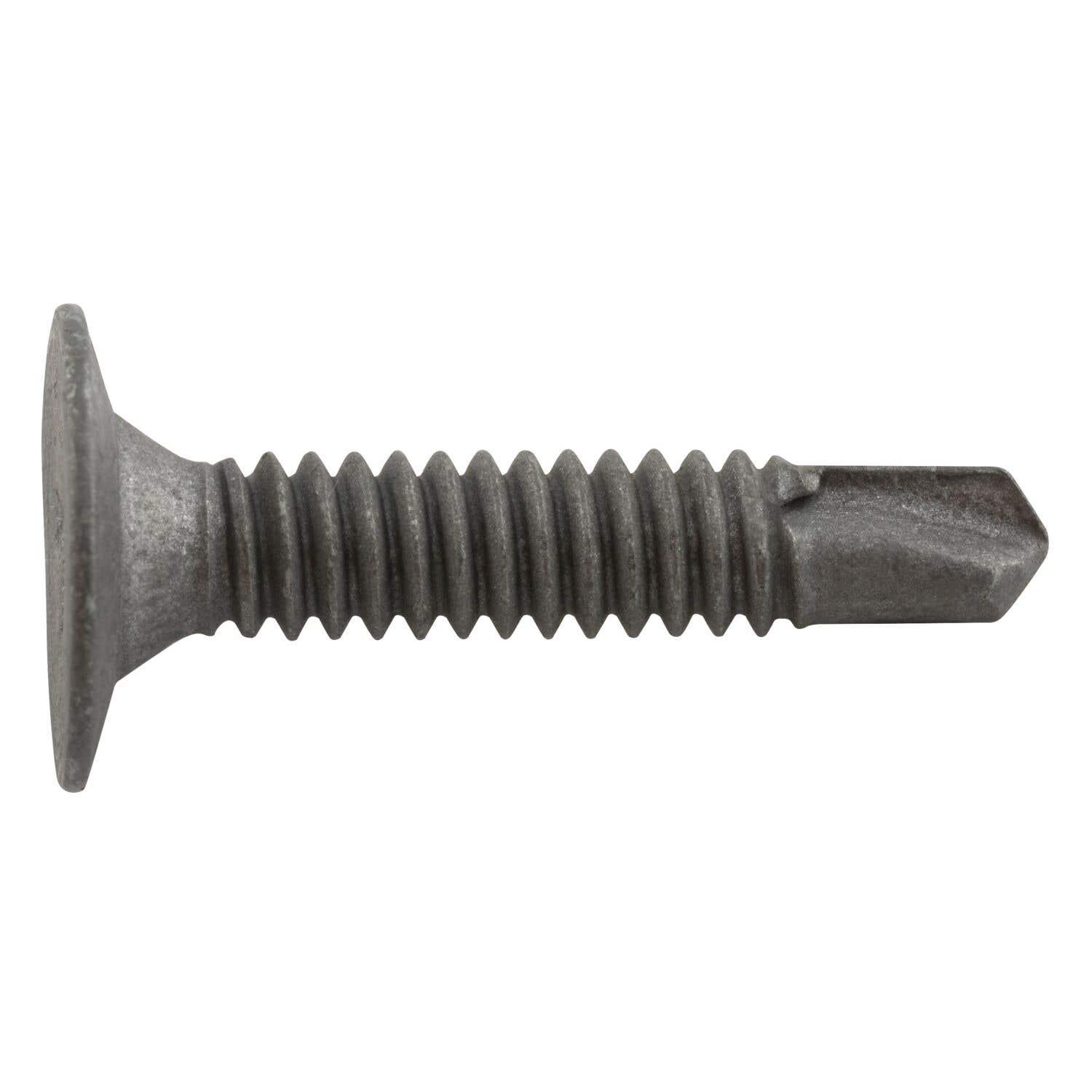

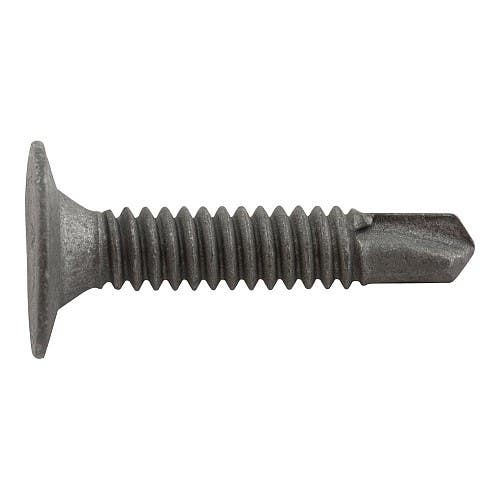

#10-24 x 1-1/4" Drilit Self-Drilling Screws for Wood-to-Metal Applications, Phillips Wafer Head, #3 Point, Case Hardened Carbon Steel with ACQ Gray Stalgard Coating
ELC EDM607-I-100
IN STOCK
Only 19 Remaining!
$13.40 /Box
(100/Box)
DRILIT FEATURES
- Eliminates separate drilling and tapping operations
- Fasteners coated with Stalgard® and Gray Stalgard® finish typically show no red rust or other base metal corrosion on significant surfaces after 1000 hours of 5% neutral salt spray exposure (per ASTM B117)
- Screws with EPDM Bonded Sealing washers are available in multiple sizes and configurations for applications requiring a weather-tight seal
- Fasteners coated with Gray Stalgard® are compatible with ACQ-treated lumber with retention levels no higher than .25 pcf
APPLICATIONS
- Steel-to-steel connections
- Wood-to-steel connections
- Composite material-to-steel connections
Specifications
General
- Product Type
- Self-Drilling Screw Wood-to-Metal
- UOM
- BX
- Unit Size
- 100
- Pieces Per Unit
- 100/BX
- Weight
- 0.800000
- Product Brand
- Elco Construction Products
- Product Sub Brand
- Drilit®
- MPN
- EDM607-I-100
- UPC
- 662963030168
Technical
- Diameter
- #10
- Length
- 1-1/4"
- Material
- Case Hardened Steel
- Finish
- ACQ Gray Stalgard®
- Drive Type
- Phillips
- Head Dia.
- 0.470"
- Head Type
- Wafer
- Point Size
- #3
- Point Type
- Self-Drill
- TPI
- 16
- Thread Size
- #10-24
- Max Load Bearing Length
- 0.813"
- Driver Size
- #2
- Max Material Thickness
- 5/8"
- Shank Dia
- #10
- Drilling Capacity
- .036" - .187"
- Min Protrusion Length
- 7/16"
- Drive Size
- 6869
- Cordless
- No
Compliance
- DFAR Compliant
- No
- QSLD Compliant
- No
APPROVALS & LISTING
- International Code Council, Evaluation Service (ICC-ES), ESR-3294
- International Code Council, Evaluation Service (ICC-ES), ESR-4367
- Code compliant with the International Building Code/International Residential Code: 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
- Tested in accordance with ICC-ES AC118 for use in Steel-to-Steel Connections
- Tested in accordance with ICC-ES AC500 for attaching Miscellaneous Building Materials to Steel
