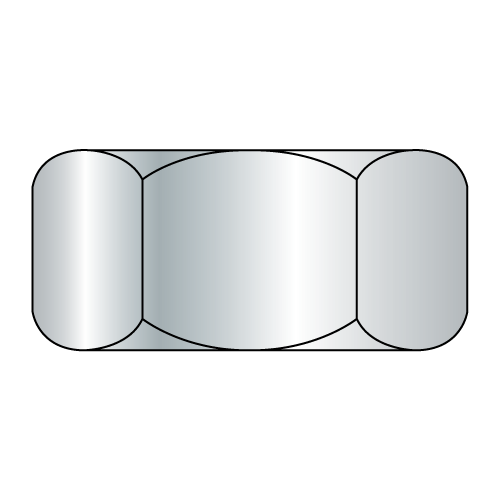

Heavy Hex Nuts

A six sided internally threaded fastener, which is both thicker and wider than a same-sized finished nut. Nuts size 7/16 and smaller shall be double chamfered. Larger sizes are either double chamfered or chamfered on top with a washer faced bearing surface.

The strongest of all comparably graded nuts because of its greater length of thread engagement and greater resistance to dilation (widening or stretching). Grade-A nuts are used with low carbon heavy hex bolts. Grade-C nuts are recommended for use with A-325 structural bolts. Grade-2H nuts are recommended for use with bolts in high-pressure and high-temperature applications.

Grade A Heavy Hex Nuts

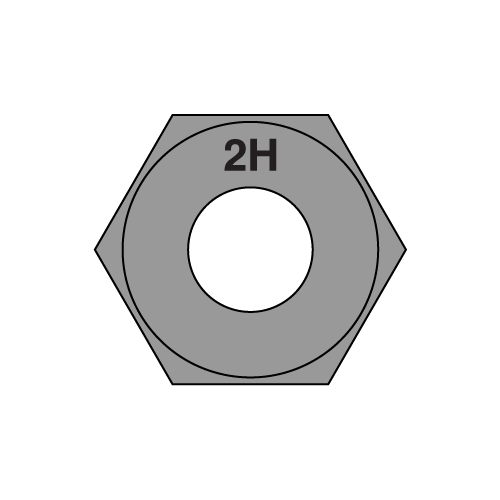

Grade 2H Plain Steel, ASTM A194

Grade C Plain Steel, ASTM A563

18-8 Stainless Heavy Hex Nuts

316 Heavy Hex Nuts

SKU	Product Type	Diameter	TPI	Thread Type	Steel Grade	Material	Finish	Pieces Per Unit	Price
100CNHH	Heavy Hex Nut	1"	8	Coarse	A	Steel	Plain	10/Box	$15.85
112CNHH	Heavy Hex Nut	1-1/8"	7	Coarse	A	Steel	Plain	10/Box	$24.34
125CNHH	Heavy Hex Nut	1-1/4"	7	Coarse	A	Steel	Plain	10/Box	$26.87
150CNHH	Heavy Hex Nut	1-1/2"	6	Coarse	A	Steel	Plain	5/Box	$21.39
175CNHH	Heavy Hex Nut	1-3/4"	5	Coarse	A	Steel	Plain	5/Box	$33.17
25CNHH	Heavy Hex Nut	1/4"	20	Coarse	A	Steel	Plain	100/Box	$3.25
31CNHH	Heavy Hex Nut	5/16"	18	Coarse	A	Steel	Plain	100/Box	$4.75
37CNHH	Heavy Hex Nut	3/8"	16	Coarse	A	Steel	Plain	100/Box	$10.90
43CNHH	Heavy Hex Nut	7/16"	14	Coarse	A	Steel	Plain	100/Box	$13.30
50CNHH	Heavy Hex Nut	1/2"	13	Coarse	A	Steel	Plain	100/Box	$14.90
56CNHH	Heavy Hex Nut	9/16"	12	Coarse	A	Steel	Plain	25/Box	$8.61
62CNHH	Heavy Hex Nut	5/8"	11	Coarse	A	Steel	Plain	50/Box	$14.90
75CNHH	Heavy Hex Nut	3/4"	10	Coarse	A	Steel	Plain	25/Box	$10.75
87CNHH	Heavy Hex Nut	7/8"	9	Coarse	A	Steel	Plain	15/Box	$13.05
100CNHHZ	Heavy Hex Nut	1"	8	Coarse	A	Steel	Zinc	10/Box	$11.69

Displaying 15 of 26 Products

SKU	Product Type	Diameter	TPI	Thread Type	Steel Grade	Material	Finish	Pieces Per Unit	Price
87CNH2H	Heavy Hex Nut	7/8"	9	Coarse	2H	Carbon Steel	Plain	300/Box	$165.36
75CNH2H	Heavy Hex Nut	3/4"	10	Coarse	2H	Carbon Steel	Plain	500/Box	$171.73
62CNH2H	Heavy Hex Nut	5/8"	11	Coarse	2H	Carbon Steel	Plain	400/Box	$87.78
50CNH2H	Heavy Hex Nut	1/2"	13	Coarse	2H	Carbon Steel	Plain	700/Box	$108.05
125CNH2H	Heavy Hex Nut	1-1/4"	7	Coarse	2H	Carbon Steel	Plain	150/Box	$278.89
100CNH2H	Heavy Hex Nut	1"	8	Coarse	2H	Carbon Steel	Plain	250/Box	$397.50

Displaying 6 of 6 Products

SKU	Product Type	Diameter	TPI	Thread Type	Steel Grade	Material	Finish	Pieces Per Unit	Price
100CNA563C	Heavy Hex Nut	1"	8	Coarse	C	Carbon Steel	Plain	100/Box	$103.06
50CNA563C	Heavy Hex Nut	1/2"	13	Coarse	C	Carbon Steel	Plain	100/Box	$11.92
50CNA563C/BULK	Heavy Hex Nut	1/2"	13	Coarse	C	Carbon Steel	Plain	1000/Box	$137.05
62CNA563C	Heavy Hex Nut	5/8"	11	Coarse	C	Carbon Steel	Plain	400/Box	$146.26
75CNA563C	Heavy Hex Nut	3/4"	10	Coarse	C	Carbon Steel	Plain	250/CT	$96.49
87CNA563C	Heavy Hex Nut	7/8"	9	Coarse	C	Carbon Steel	Plain	150/Box	$92.36

Displaying 6 of 6 Products

SKU	Product Type	Diameter	TPI	Thread Type	Steel Grade	Material	Finish	Pieces Per Unit	Price
75CNHHS	Heavy Hex Nut	3/4"	10	Coarse	18-8	Stainless Steel	Plain	50/Box	$137.70
62CNHHS	Heavy Hex Nut	5/8"	11	Coarse	18-8	Stainless Steel	Plain	50/Box	$62.63
56CNHHS	Heavy Hex Nut	9/16"	12	Coarse	18-8	Stainless Steel	Plain	50/Box	$118.25
50CNHHS	Heavy Hex Nut	1/2"	13	Coarse	18-8	Stainless Steel	Plain	100/Box	$73.10
43CNHHS	Heavy Hex Nut	7/16"	14	Coarse	18-8	Stainless Steel	Plain	100/Box	$78.55
37CNHHS	Heavy Hex Nut	3/8"	16	Coarse	18-8	Stainless Steel	Plain	100/Box	$33.90
31CNHHS	Heavy Hex Nut	5/16"	18	Coarse	18-8	Stainless Steel	Plain	100/Box	$25.05
25CNHHS	Heavy Hex Nut	1/4"	20	Coarse	18-8	Stainless Steel	Plain	100/Box	$14.25
100CNHHS	Heavy Hex Nut	1"	8	Coarse	18-8	Stainless Steel	Plain	25/Box	$213.16

Displaying 9 of 9 Products

SKU	Product Type	Diameter	TPI	Thread Type	Steel Grade	Material	Finish	Pieces Per Unit	Price
87CNHH3	Heavy Hex Nut	7/8"	9	Coarse	316	Stainless Steel	Plain	25/Box	$144.11
75CNHH3	Heavy Hex Nut	3/4"	10	Coarse	316	Stainless Steel	Plain	50/Box	$131.20
62CNHH3/BULK	Heavy Hex Nut	5/8"	11	Coarse	316	Stainless Steel	Plain	50/Box	$84.20
62CNHH3	Heavy Hex Nut	5/8"	11	Coarse	316	Stainless Steel	Plain	50/Box	$84.20
56CNHH3	Heavy Hex Nut	9/16"	12	Coarse	316	Stainless Steel	Plain	50/Box	Contact for Pricing
50CNHH3	Heavy Hex Nut	1/2"	13	Coarse	316	Stainless Steel	Plain	100/Box	$119.85
43CNHH3	Heavy Hex Nut	7/16"	14	Coarse	316	Stainless Steel	Plain	100/Box	$123.25
37CNHH3/BULK	Heavy Hex Nut	3/8"	16	Coarse	316	Stainless Steel	Plain	100/Box	$47.00
37CNHH3	Heavy Hex Nut	3/8"	16	Coarse	316	Stainless Steel	Plain	100/Box	$47.00
31CNHH3	Heavy Hex Nut	5/16"	18	Coarse	316	Stainless Steel	Plain	100/Box	$25.00
25CNHH3	Heavy Hex Nut	1/4"	20	Coarse	316	Stainless Steel	Plain	100/Box	$17.65
100CNHH3	Heavy Hex Nut	1"	8	Coarse	316	Stainless Steel	Plain	25/Box	$193.13

Displaying 12 of 12 Products
