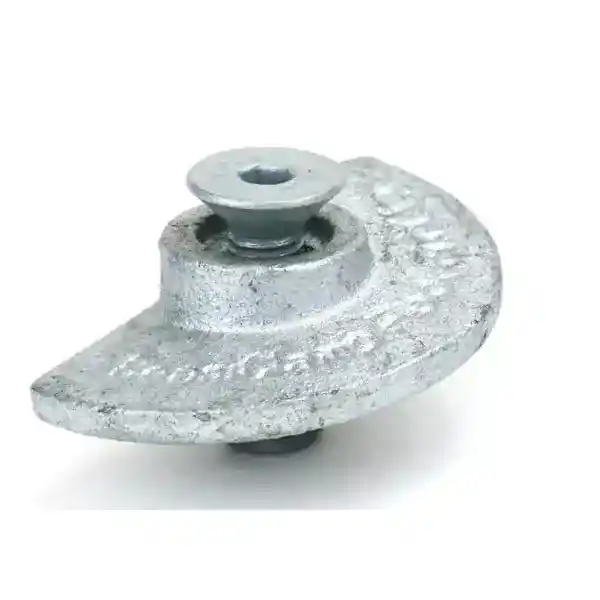

The Grating Clip Steel Floor Grating Clamp Fastener, 5/16" Screw Diameter, LNA Solutions GRAT1G08

GRAT1G08

IN STOCK

$546.00 /Box

(100/Box)

Overview

The GRAT1G08 Grating Clip from LNA Solutions, also known as a Grating Fastener, is the most common style of floor grating clamps. They're often used for clamping down open steel flooring using hand tools and require no cutting, tapping, or drilling. Grating Fasteners are also safer because they don't require welding or drilling, which is perfect for industrial environments where drilling and welding is not allowed.

  • Comes standard with a top bracket to suit 1-3/16” - 1-5/8” ctrs grating bars
Specifications
General
Product Type
Grating Clips
UOM
BX
Unit Size
100
Pieces Per Unit
100/BX
Weight
33.000000
Product Brand
LNA Solutions
MPN
GRAT1G08
Additional Info
Grating Bar Spacing Min: 1-3/16, Max: 1-5/8 Grating Bar Depth Max: 2-1/4 minus T
Technical
Diameter
5/16"
Finish
Hot Dip Galvanized
Flange Thickness
1/8 – 3/4
Screw Diameter
5/16
Compliance
DFAR Compliant
No
QSLD Compliant
No
