ITW Buildex

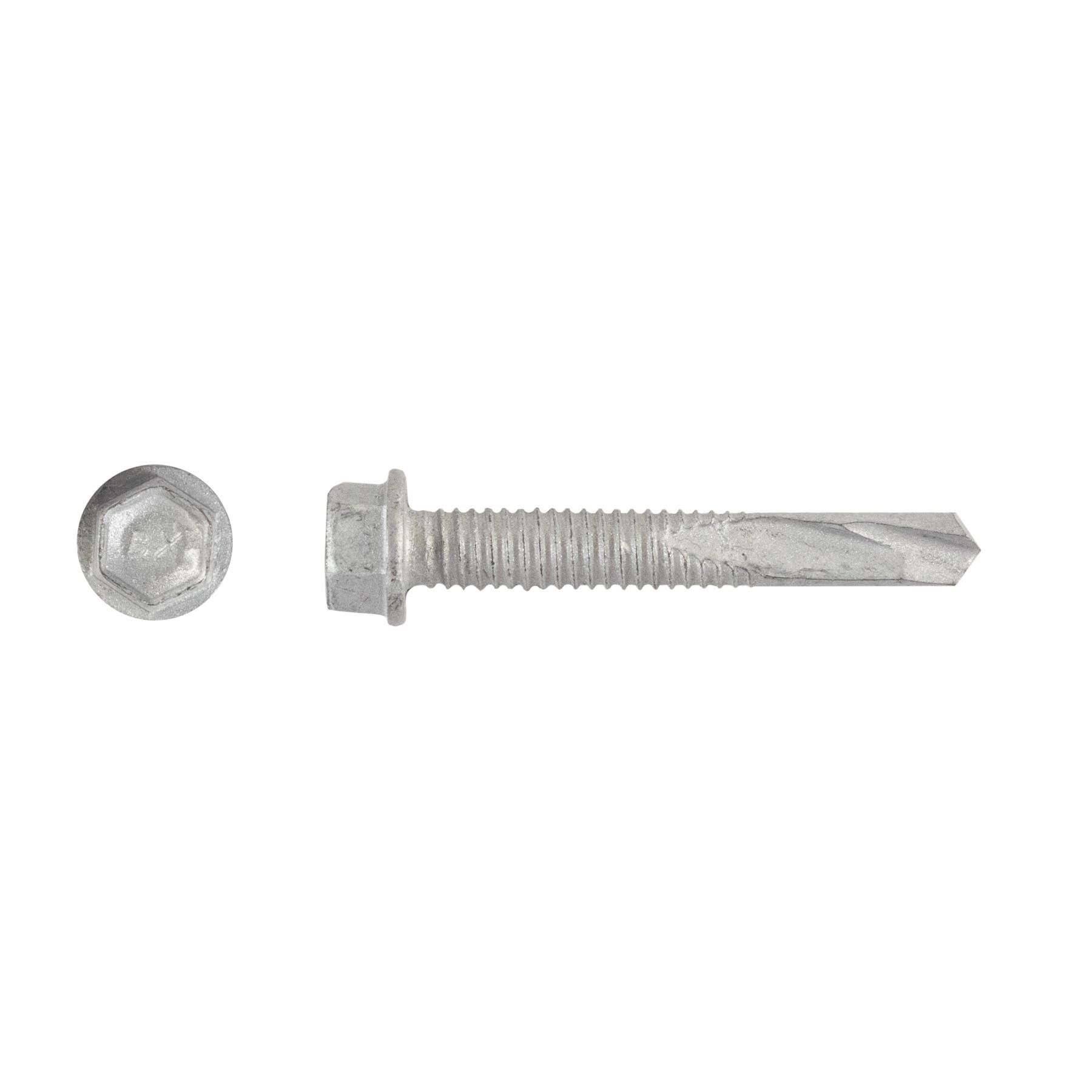

#12-24 x 7/8'' Teks® 4 Steel to Steel Self-Drilling Screws, Hex Washer, Hex-Unslotted, Climaseal®, 1088000
ITW 1088000
IN STOCK
$696.75 /Box
(5000/Box)
Tek-4 Heavy Duty Self-Drilling Screws
Features and Benefits:
- Engineered for fast drilling and smooth tapping with less effort.
- Climaseal® finish provides excellent corrosion resistance and lower tapping torque.
- Attachments up to 7.15" of material.
- 1/4 Diameter has notched threads to reduce tapping torque.
INSTALLATION GUIDELINES
- A standard screw gun with a depth sensitive nosepiece should be used to install Teks. For optimal fastener performance, the screw gun should be a minimum of 6 amps and have a RPM range of 0-2500. (Maximum 1800 RPM is recommended for Teks 5 fasteners)
- Adjust the screw gun nosepiece to properly seat the fastener.
- New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
- The fastener is fully seated when the head is flush with the work surface.
- Overdriving may result in torsional failure of the fastener or strip out of the substrate.
- The fastener must penetrate beyond the metal structure a minimum of 3 pitches of thread.
Specifications
General
- Product Type
- Self-Drilling Screw
- UOM
- BX
- Unit Size
- 5000
- Pieces Per Unit
- 5000/BX
- Weight
- 51.250000
- Product Brand
- ITW Buildex
- Product Sub Brand
- TEKS®
- MPN
- 1088000
- COO
- United States of America (the)
- Made in USA
- yes
- Product AKA & Related Tags
- TEK Screws, TEKS Screws, TEK SDS, TEK Self-Tapping
Content
- Application & Uses 1
- Metal deck to structural steel or bar joist.
- Application & Uses 2
- Clips to structural steel or bar joist.
- Application & Uses 3
- Liner panels to structural steel or bar joist.
- Application & Uses 4
- Accessories to structural steel or bar joist.
- Application & Uses 5
- Accessories to structural steel or bar joist.
- Features & Benefits 1
- Unique double fluted point has precise cutting edges to improve drill performance in 1/4" through 1/2" steel.
- Features & Benefits 2
- Engineered for fast drilling and smooth tapping with less effort.
- Features & Benefits 3
- Climaseal® finish provides excellent corrosion resistance and lower tapping torque.
- Features & Benefits 4
- Attachments up to 7.2" of material including 1/2" steel.
- Features & Benefits 5
- 1/4 Diameter has notched threads to reduce tapping torque.
- Installation Guideline 1
- A standard screwgun with a depth sensitive nosepiece should be used to install Teks. For optimal fastener performance, the screwgun should be a minimum of 6 amps and have a RPM range of 0-2500. (Maximum 1800 RPM is recommended for Teks 5 fasteners).
- Installation Guideline 2
- Adjust screwgun nosepiece to properly seat the fastener.
- Installation Guideline 3
- New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
- Installation Guideline 4
- The fastener is fully seated when the head is flush with the work surface.
- Installation Guideline 5
- Overdriving may result in torsional failure of the fastener or stripout of the substrate.
Technical
- Diameter
- #12
- Length
- 7/8"
- Material
- Steel
- Steel Grade
- C1022
- Finish
- Climaseal
- Width Across Flats: Basic
- 5/16
- Drive Type
- Hex, Unslotted
- Head Type
- Hex Washer
- Point Size
- #4
- Tensile Strength
- 3,020
- TPI
- 24
- Tensile (lbf)
- 3,020
- Torque (lbs)
- 100
- Drill - Tap Capacity
- .125-.500
- Installation Tool
- 5/16'' Drive Socket
- Max Material Attachments
- 0.325
- Max Material Range
- .125''-.325''
- Cordless
- No
Compliance
- DFAR Compliant
- No
- QSLD Compliant
- No
