ITW Buildex

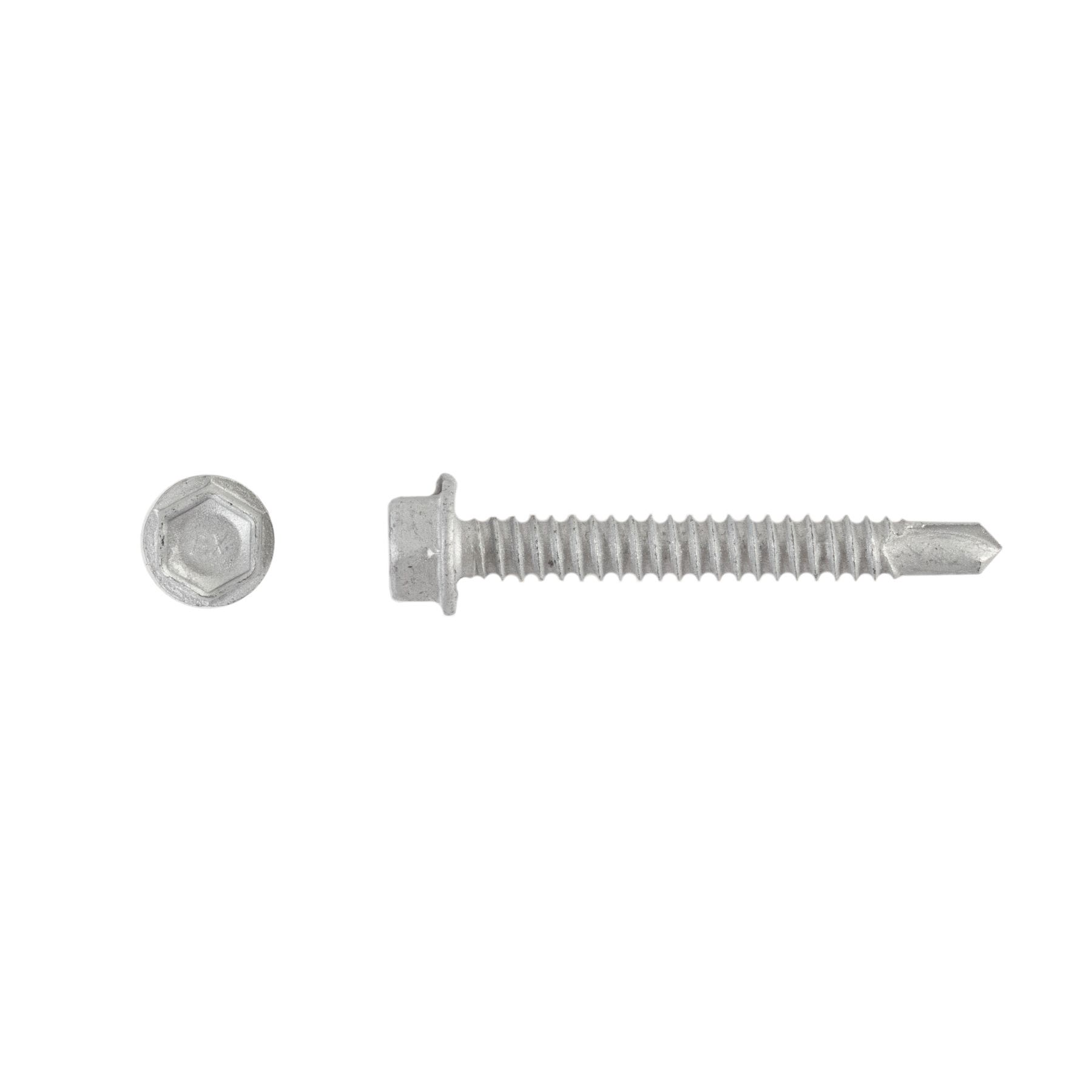

1/4-14 x 3'' Teks® 3 Steel to Steel Self-Drilling Screws, Hex Washer Head, Hex-Unslotted, Climaseal®, 1157000
ITW 1157000
IN STOCK
$282.40 /Box
(1000/Box)
Tek-3 Medium Duty Self-Drilling Screws
Features and Benefits:
- Point has precise cutting edges to improve drill performance with less effort.
- Non-walking point provides fast material engagement.
- Point to thread design maximizes pullout performance and minimizes backout. • Drills and taps in the broadest range of applications.
- Climaseal® finish provides excellent corrosion resistance and lower tapping torque.
INSTALLATION GUIDELINES
- A standard screw gun with a depth sensitive nosepiece should be used to install Teks. For optimal fastener performance, the screw gun should be a minimum of 6 amps and have a RPM range of 0-2500.
- Adjust the screw gun nosepiece to properly seat the fastener.
- New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
- The fastener is fully seated when the head is flush with the work surface.
- Overdriving may result in torsional failure of the fastener or strip out of the substrate.
- The fastener must penetrate beyond the metal structure a minimum of 3 pitches of thread
Specifications
General
- Product Type
- Self-Drilling Screw
- UOM
- BX
- Unit Size
- 1000
- Pieces Per Unit
- 1000/BX
- Weight
- 33.850000
- Product Brand
- ITW Buildex
- Product Sub Brand
- TEKS®
- MPN
- 1157000
- COO
- Taiwan (Province of China)
- Product AKA & Related Tags
- TEK Screws, TEKS Screws, TEK SDS, TEK Self-Tapping
Content
- Application & Uses 1
- Roof deck to steel framing.
- Application & Uses 2
- Wall panel to girt.
- Application & Uses 3
- Duct work to steel framing.
- Application & Uses 4
- Accessories to steel framing.
- Application & Uses 5
- Accessories to steel framing.
- Features & Benefits 1
- Point has precise cutting edges to improve drill performance with less effort.
- Features & Benefits 2
- Non-walking point provides fast material engagement.
- Features & Benefits 3
- Point-to-thread design maximizes pullout performance and minimizes backout.
- Features & Benefits 4
- Drills and taps in the broadest range of applications.
- Features & Benefits 5
- Climaseal® finish provides excellent corrosion resistance and lower tapping torque.
- Installation Guideline 1
- A standard screwgun with a depth sensitive nosepiece should be used to install Teks. For optimal fastener performance, the screwgun should be a minimum of 6 amps and have a RPM range of 0-2500.
- Installation Guideline 2
- Adjust screwgun nosepiece to properly seat the fastener.
- Installation Guideline 3
- New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
- Installation Guideline 4
- The fastener is fully seated when the head is flush with the work surface.
- Installation Guideline 5
- Overdriving may result in torsional failure of the fastener or stripout of the substrate.
Technical
- Diameter
- 1/4"
- Length
- 3"
- Material
- Steel
- Steel Grade
- C1022
- Finish
- Climaseal
- Width Across Flats: Basic
- 3/8
- Drive Type
- Hex, Unslotted
- Head Type
- Hex Washer
- Point Size
- #3
- Tensile Strength
- 4,060
- TPI
- 14
- Tensile (lbf)
- 4,060
- Torque (lbs)
- 150
- Drill - Tap Capacity
- .036-.210
- Installation Tool
- 3/8'' Drive Socket
- Max Material Attachments
- 2.400
- Max Material Range
- .036''-2.40''
- Cordless
- No
Compliance
- DFAR Compliant
- No
- QSLD Compliant
- No
