3/8" x 3-1/2" Powers Power-Bolt+ Heavy Duty Sleeve Anchors, Hex Head, Carbon Steel Zinc Plated,

POW 6914SD

IN STOCK

$105.58 /Box

(50/Box)

Overview

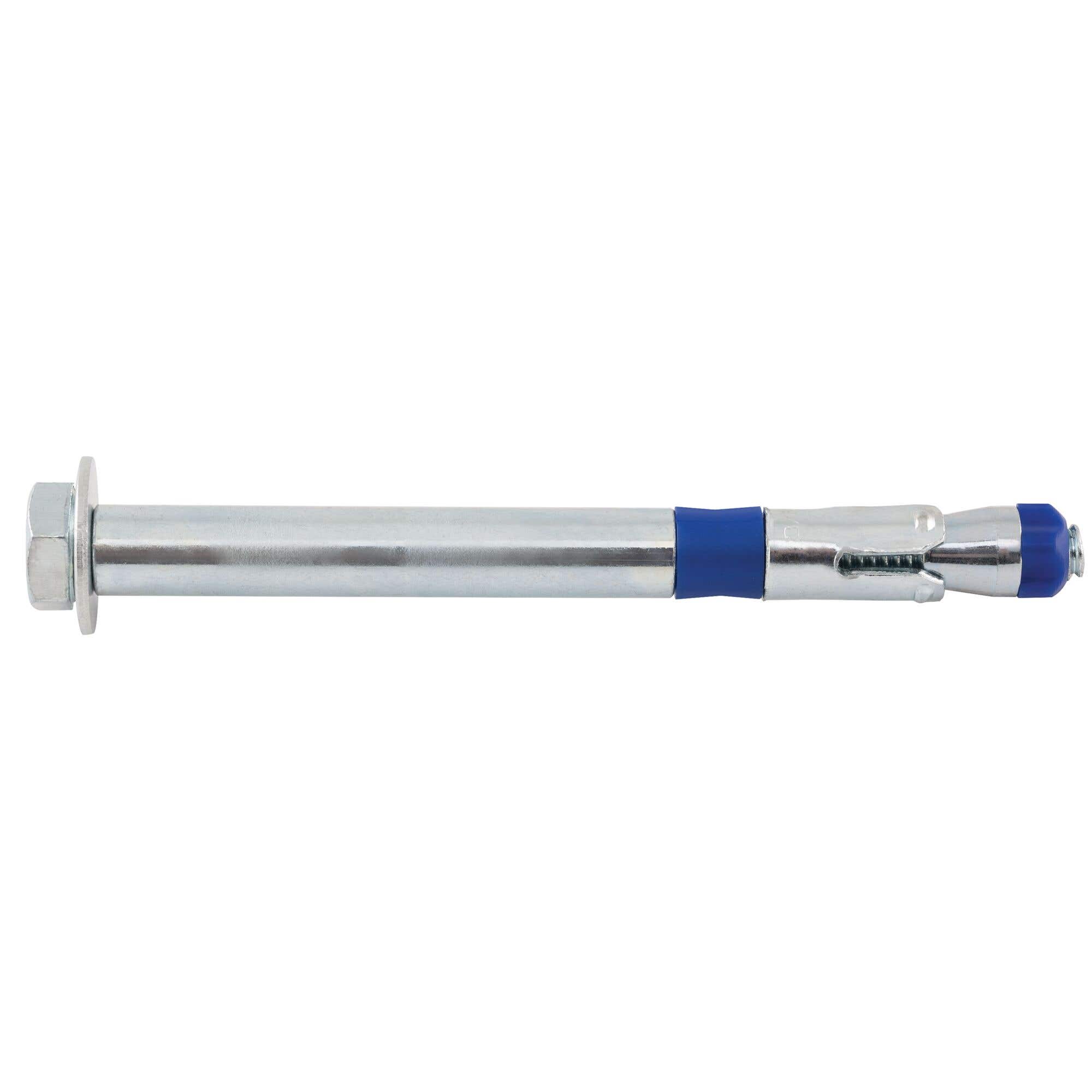

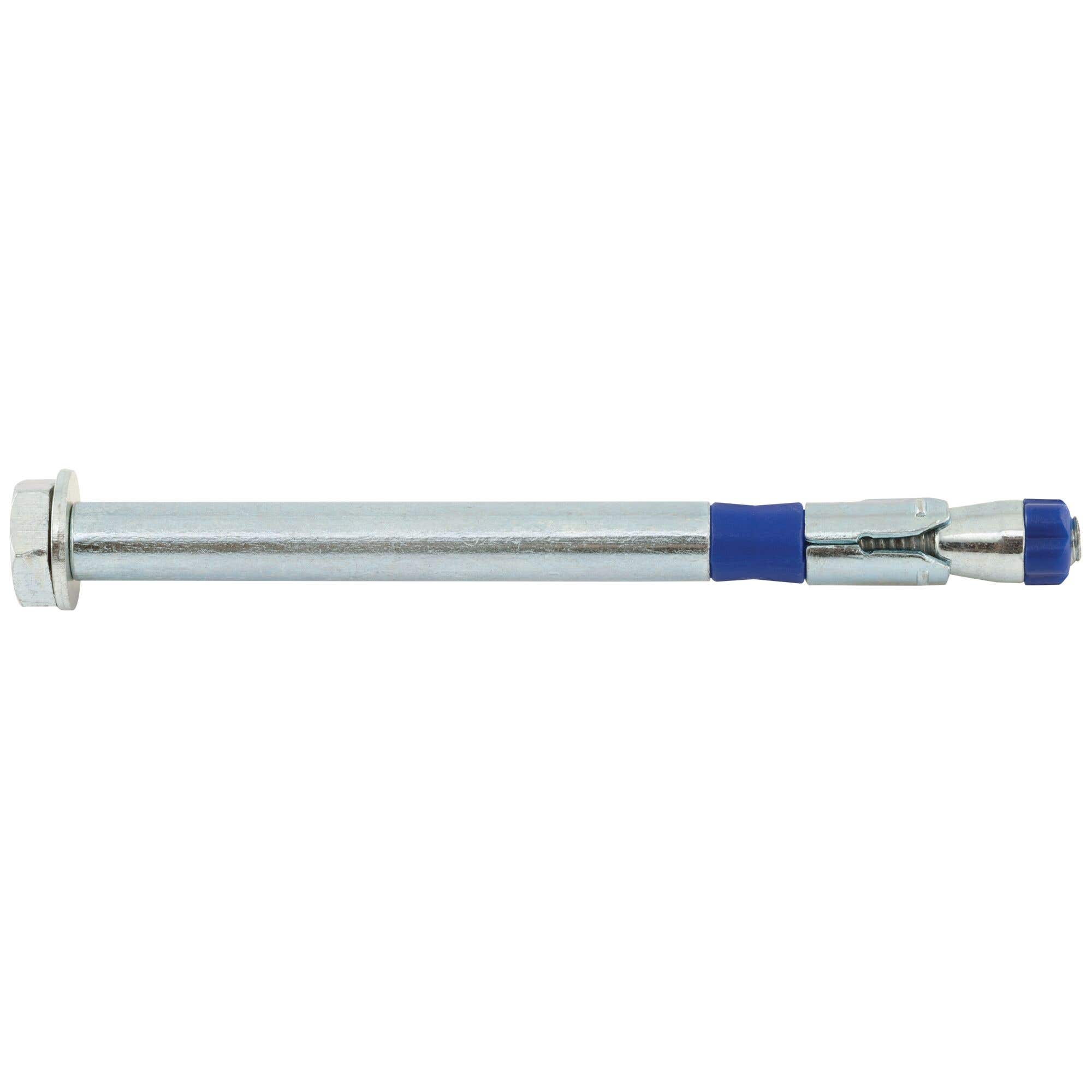

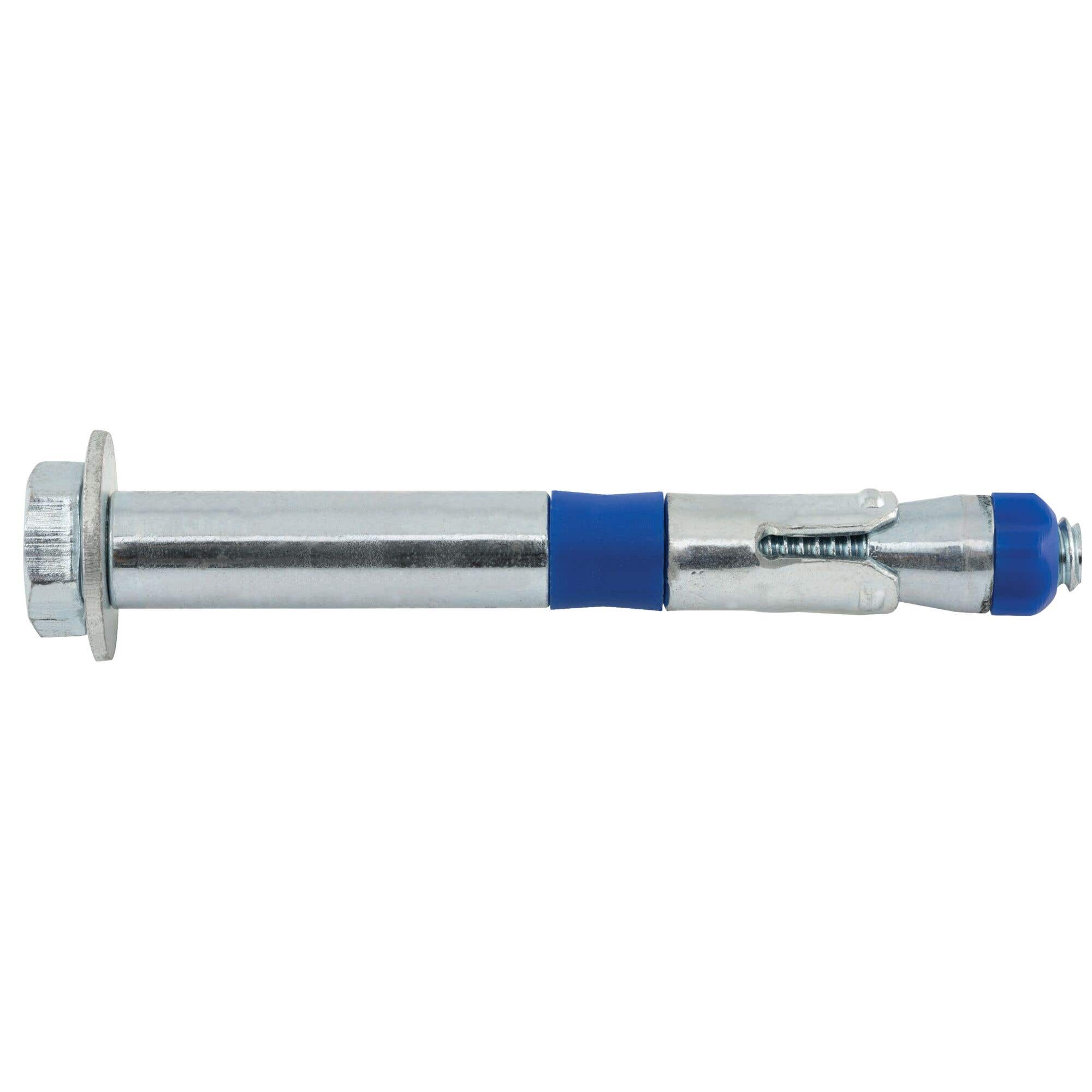

The Power-Bolt+ anchor is a torque-controlled, heavy-duty sleeve style anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete and sand-lightweight concrete. The anchor is manufactured with a zinc-plated carbon steel bolt, sleeve, cone, and expansion clip. The Power-Bolt+ has a low-profile finished hex head.

3/8" x 3-1/2" Powers Power-Bolt+ Heavy Duty Sleeve Anchors

DeWalt Powers Power-Bolt+ Sleeve Anchor
This video shows how to install the Power-Bolt+ Sleeve Anchor

1/4" x 1-3/4" Powers Power-Bolt+ Heavy Duty Sleeve Anchors

Suitable Base Materials

  • Cracked and Uncracked Concrete
  • Uncracked Masonry

Applications

  • Sill plates
  • Ledgers
  • Post bases
  • Seating
  • other hoedown applications
Specifications
General
UOM
BX
Unit Size
50
Pieces Per Unit
50/BX
Weight
0.000000
Product Type
Sleeve Expansion Anchor
MPN
6914SD-PWR
Product Brand
DeWalt
Product Sub Brand
POWER-BOLT®+
UPC
075352805177
Product AKA & Related Tags
HSL-3, HSL4
Technical
Diameter
3/8"
Length
3-1/2"
Head Type
Hex
Drive Type
Hex
Material
Carbon Steel
Finish
Zinc
Anchor Dia.
3/8"
ICC Approved
Yes
Size / Description
3/8" X 3-1/2"
Cordless
No
APPROVALS & LISTING
  • International Code Council, Evaluation Service (ICC-ES), ESR-3260 for cracked and uncracked concrete; code complaint with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC and 2012 IBC/IRC
  • Tested in accordance with ACI 355.2/ASTM E488 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318 (-19 or -14) Chapter 17 or ACI 318-11 Appendix D
  • Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (anchor category 1 for 1/2" to 3/4" sizes)
  • City of Los Angeles, LABC Supplement (within ESR-3260)
