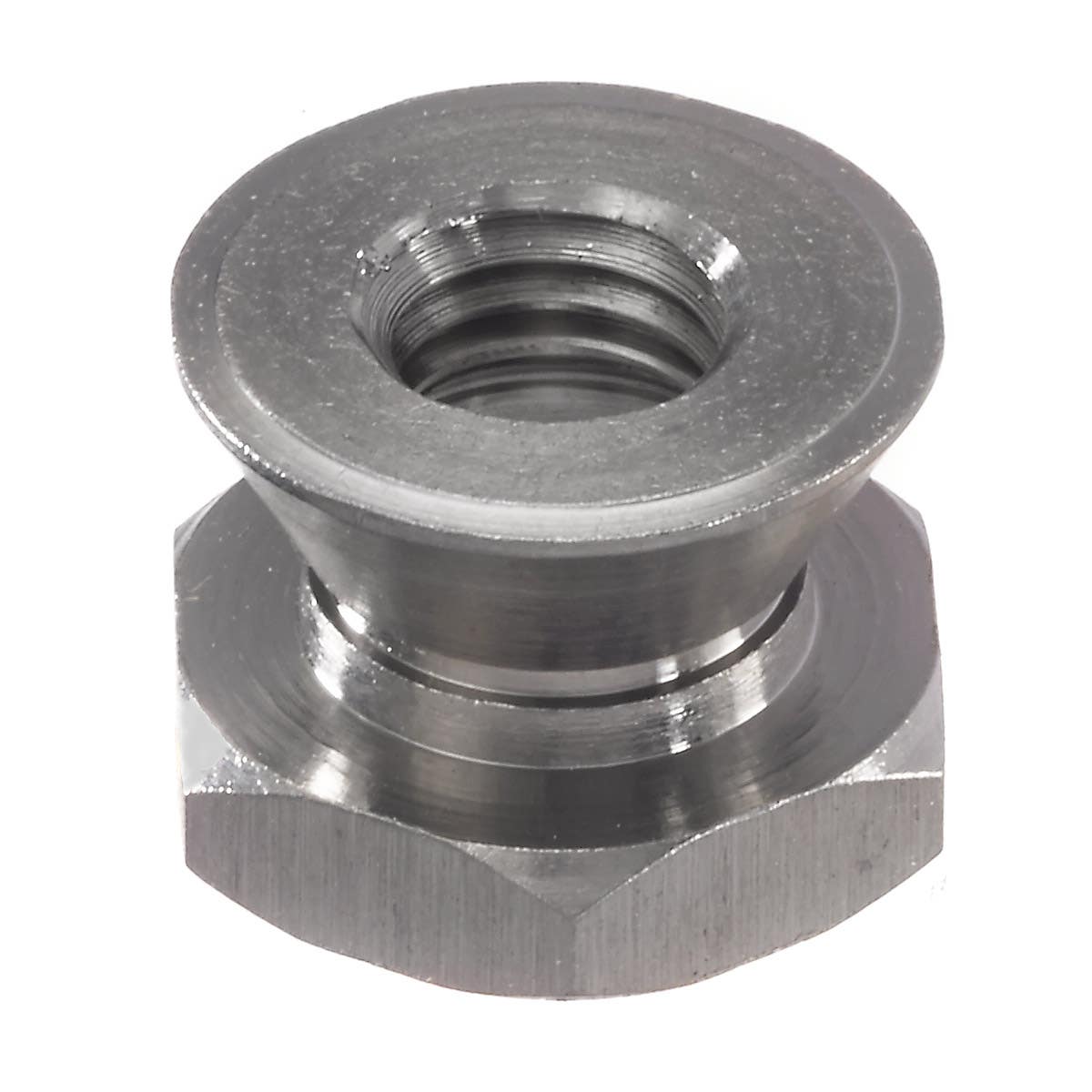

Tamper-Proof Security Break-Away Nuts

Break-Away nuts are designed to prevent unauthorized removal and secure access to equipment and facilities. No special tool is required. Break- Away nuts are installed using a standard wrench. They are used extensively in correctional institutions, hospitals, schools, public places, and retail stores to secure a variety of products.

Break-Away nuts are suitable for applications where removal of a fixture is not intended and where prevention of tampering is important. Manufactured from ZAMAK 5 zinc alloy and 304 stainless steel. Stainless steel offers greater corrosion resistance and high-strength properties compared to zinc alloy. The nuts are tapped to standard bolt dimensions and are also available tapped oversize for hot dip galvanized fasteners.

Break-Away Nuts are a Non-Removable Security Solution

Zamak 5 Zinc Alloy, Tamper-Proof Break-Away Nuts

Zamak 5 Zinc Alloy, Tamper-Proof Break-Away Nuts - Metric Sizes

304 Stainless Steel, Tamper-Proof Break-Away Nuts

304 Stainless Steel, Tamper-Proof Break-Away Nuts - Metric Sizes

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
62CNBAWZ	Tamper-Resistant Security Nut	5/8"	11	Hex	Zamak 5	Zinc	25/Box	$38.63
50CNBAWZ	Tamper-Resistant Security Nut	1/2"	13	Hex	Zamak 5	Zinc	50/Box	$61.80
37CNBAWZ	Tamper-Resistant Security Nut	3/8"	16	Hex	Zamak 5	Zinc	100/Box	$49.85
31CNBAWZ	Tamper-Resistant Security Nut	5/16"	18	Hex	Zamak 5	Zinc	100/Box	$61.80
25CNBAWZ	Tamper-Resistant Security Nut	1/4"	20	Hex	Zamak 5	Zinc	100/Box	$39.90
10CNBAWZ	Tamper-Resistant Security Nut	#10	24	Hex	Zamak 5	Zinc	100/Box	$43.30

Displaying 6 of 6 Products

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
M6CNBAWZ	Tamper-Resistant Security Nut	M6	1mm	Hex	Zamak 5	Zinc	100/Box	$41.05
M8CNBAWZ	Tamper-Resistant Security Nut	M8	1.25mm	Hex	Zamak 5	Zinc	100/Box	$43.65
M10CNBAWZ	Tamper-Resistant Security Nut	M10	1.5mm	Hex	Zamak 5	Zinc	100/Box	$49.85
M12CNBAWZ	Tamper-Resistant Security Nut	M12	1.75mm	Hex	Zamak 5	Zinc	50/Box	$35.28

Displaying 4 of 4 Products

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
62CNBAWS	Tamper-Resistant Security Nut	5/8"	11	Hex	Stainless Steel	Plain	50/Box	$134.60
50CNBAWS	Tamper-Resistant Security Nut	1/2"	13	Hex	Stainless Steel	Plain	100/Box	$199.40
37CNBAWS	Tamper-Resistant Security Nut	3/8"	16	Hex	Stainless Steel	Plain	100/Box	$129.60
31CNBAWS	Tamper-Resistant Security Nut	5/16"	18	Hex	Stainless Steel	Plain	100/Box	$84.75
25CNBAWS	Tamper-Resistant Security Nut	1/4"	20	Hex	Stainless Steel	Plain	100/Box	$67.30

Displaying 5 of 5 Products

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
M6CNBAWS	Tamper-Resistant Security Nut	M6	1.0	Hex	Stainless Steel	Plain	100/Box	$58.30
M8CNBAWS	Tamper-Resistant Security Nut	M8	1.25	Hex	Stainless Steel	Plain	100/Box	$68.90
M10CNBAWS	Tamper-Resistant Security Nut	M10	1.5mm	Hex	Stainless Steel	Plain	50/Box	$50.35
M12CNBAWS	Tamper-Resistant Security Nut	M12	1.75	Hex	Stainless Steel	Plain	50/Box	$52.48

Displaying 4 of 4 Products

Material Specifications Zamak 5

Material Specifications 304 Stainless Steel

<table class="tspecTable" cellspacing="0" width="100%"> <tbody> <tr> <td colspan="4" bgcolor="#EFEFEF">CHEMICAL COMPOSITION</td> <td colspan="2" bgcolor="#EFEFEF">MECHANICAL PROPERTIES</td> </tr> <tr> <td>Carbon</td> <td>0.08</td> <td>Chronium</td> <td>0.75</td> <td>0.2% Offset Yield Strenth, PSI</td> <td>30,000</td> </tr> <tr> <td>Manganese</td> <td>2</td> <td>Cadmium (max.)</td> <td>18.0 - 20.0</td> <td>Ultimate Tensile Strength PSI</td> <td>75,000</td> </tr> <tr> <td>Phosphorus</td> <td>0.045</td> <td>Nickel</td> <td>8.0 -10.5</td> <td>Elongation % in 2in.</td> <td>40</td> </tr> <tr> <td>Sulfur</td> <td>0.03</td> <td>Aluminum</td> <td>0.1</td> <td>Hardness, Max., Brinell</td> <td>201</td> </tr> </tbody> </table>

Dimensional Data for Break-Away Nuts

<table class="tspecTable" cellspacing="0" width="100%"> <tbody> <tr> <td bgcolor="#EFEFEF">T. THREAD</td> <td align="center" bgcolor="#EFEFEF">A. BOTTOM DIA. (MAX) </td> <td align="center" bgcolor="#EFEFEF">B. OVERALL HEIGHT</td> <td align="center" bgcolor="#EFEFEF">C. NUT HEIGHT</td> <td align="center" bgcolor="#EFEFEF">D. HEX</td> </tr> <tr> <td>10-24 </td> <td align="center"> .4375</td> <td align="center">0.390</td> <td align="center">0.180</td> <td align="center" /> </tr> <tr> <td>1/4”-20 </td> <td align="center">.5625</td> <td align="center">0.470</td> <td align="center">0.220</td> <td align="center">9/16”</td> </tr> <tr> <td>5/16”-18 </td> <td align="center"> .6250</td> <td align="center">0.500”</td> <td align="center">0.220</td> <td align="center">5/8”</td> </tr> <tr> <td>3/8”-16 </td> <td align="center"> .7500</td> <td align="center">0.580</td> <td align="center">0.250</td> <td align="center">3/4”</td> </tr> <tr> <td>1/2”-13</td> <td align="center">1.0000</td> <td align="center">0.750</td> <td align="center">0.350</td> <td align="center">1”</td> </tr> <tr> <td>5/8”-11</td> <td align="center">1.1250</td> <td align="center">0.800</td> <td align="center">0.370</td> <td align="center">1-1/8”</td> </tr> <tr> <td>M6-1.0 </td> <td align="center"> .5625</td> <td align="center">0.470</td> <td align="center">0.220</td> <td align="center">9/16”</td> </tr> <tr> <td>M8-1.25</td> <td align="center"> .6250</td> <td align="center">0.500</td> <td align="center">0.220</td> <td align="center">5/8”</td> </tr> <tr> <td>M10-1.5 </td> <td align="center"> .7500</td> <td align="center">0.580</td> <td align="center">0.250</td> <td align="center"> 3/4”</td> </tr> <tr> <td>M12-1.5</td> <td align="center">1.0000</td> <td align="center">0.750</td> <td align="center">0.350</td> <td align="center">1”</td> </tr> </tbody> </table>
