Security Trident Nuts

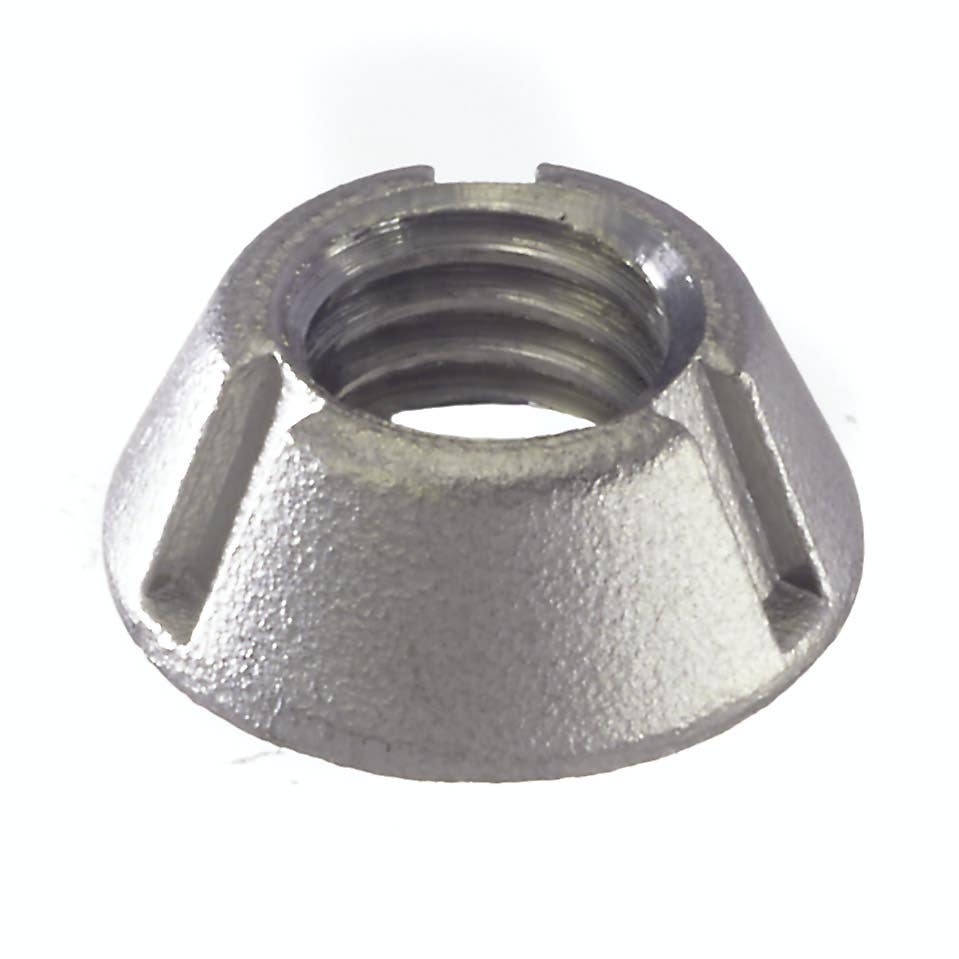

Tanner Trident Nuts are suitable for tamper-resistant fastening for a wide range of products using bolts, screws, or concrete and masonry anchoring devices. Tanner Trident Nuts have been used extensively in correctional institutions, hospitals, universities, public places and retail stores to secure a variety of products, including inmate furniture, scaffolding, electrical and electronic equipment, computers and related equipment, traffic signs, park benches, outdoor play equipment, and consumer product displays. The Trident Nut is a tamper-resistant, internally threaded fastening device featuring a conical design that prevents unauthorized removal. It has three indented slots for installation and removal with a proprietary tool.

Trident nuts are manufactured from ZAMAK 5 zinc alloy and 316 Stainless Steel

ZAMAK 5 zinc alloy (AC41A) is durable and has the highest impact strength of all the zinc-based alloys. They are lightweight, rust-proof and corrosion-resistant. Five-year exposure trials showed no significant galvanic corrosion attack on zinc alloys coupled to steel and other engineering metals.

Material Specifications Zamak 5

Type 316 is an austenitic chromium-nickel stainless steel containing molybdenum. This addition increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and increases strength at elevated temperatures.

Material Specifications Zamak 5

Material Specifications 316 Stainless Steel

Dimensional Data

Installation

Fits 7/8” socket (12 pt. std. or deep)
“O” ring on the trident socket holds the standard socket firmly
30TRI fits nut sizes 5/16”-18, 3/8”-16 and 8mm
40TRI fits nut sizes 1/2”-13, 5/8-11, 10mm
Installs with standard drive ratchet
Not to be used with an impact wrench

Fit standard 7/8” socket onto Trident socket. Align Trident Socket over Trident Nut.
Angle two Trident socket prongs into wedge cuts on the nut.
Place all three socket prongs firmly on nut. Tighten with ratchet wrench

Zamak 5 Zinc Alloy, Tamper-Resistant Trident Nuts

Zamak 5 Zinc Alloy, Tamper-Resistant Trident Nuts - Metric Sizes

Zamak 5 Zinc Alloy, Tamper-Resistant Trident Nuts - Large Diameter

316 Stainless Steel, Tamper-Resistant Trident Nuts

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
50CNTNZ	Tamper-Resistant Security Nut	1/2"	13	Trident	Zamak 5	Zinc	100/Box	$61.80
37CNTNZ	Tamper-Resistant Security Nut	3/8"	16	Trident	Zamak 5	Zinc	100/Box	$41.60
31CNTNZ	Tamper-Resistant Security Nut	5/16"	18	Trident	Zamak 5	Zinc	100/Box	$40.40
25CNTNZ	Tamper-Resistant Security Nut	1/4"	20	Trident	Zamak 5	Zinc	100/Box	$37.85
10FNTNZ	Tamper-Resistant Security Nut	#10	32	Trident	Zamak 5	Zinc	100/Box	$36.05
10CNTNZ	Tamper-Resistant Security Nut	#10	24	Trident	Zamak 5	Zinc	100/Box	$36.05

Displaying 6 of 6 Products

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
M8CNTNZ	Tamper-Resistant Security Nut	8mm	1.25mm	Trident	Zamak 5	Zinc	100/Box	$42.85
M6CNTNZ	Tamper-Resistant Security Nut	6mm	1mm	Trident	Zamak 5	Zinc	100/Box	$36.30
M10CNTNZ	Tamper-Resistant Security Nut	10mm	1.5mm	Trident	Zamak 5	Zinc	100/Box	$66.60

Displaying 3 of 3 Products

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
62CNTNZ/LP	Tamper-Resistant Security Nut	5/8"	11	Trident	Zamak 5	Zinc	50/Box	$33.48

Displaying 1 of 1 Products

SKU	Product Type	Diameter	TPI	Drive Type	Material	Finish	Pieces Per Unit	Price
50CNTN3	Tamper-Resistant Security Nut	1/2"	13	Trident	Stainless Steel	Plain	25/Box	$64.38
37CNTN3	Tamper-Resistant Security Nut	3/8"	16	Trident	Stainless Steel	Plain	50/Box	$72.10
31CNTN3	Tamper-Resistant Security Nut	5/16"	18	Trident	Stainless Steel	Plain	50/Box	$72.10
25CNTN3	Tamper-Resistant Security Nut	1/4"	20	Trident	Stainless Steel	Plain	50/Box	$61.80

Displaying 4 of 4 Products
