SIMPSON Strong-Tie
1/4" x 3" Titen HD® Heavy-Duty Screw Anchors, Countersunk Flat Head, 6-Lobe Drive, T30 Driver Size, 1/4" Drill Bit Dia, 316 Stainless Steel
SIM THDC25300CS6SS
Available to Order
$132.40 /Box
(25/Box)

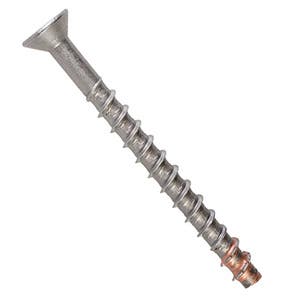

1/4" x 3" Titen HD® Heavy-Duty Screw Anchors
SIMPSON® Titen HD® Advantages
This video shows step-by-step comparison of screw anchors to wedge anchors
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.
Features
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer,
unless required by code - Fully and easily removable
- Code listed for exterior applications
Suitable Base Materials
- Cracked and Uncracked Concrete
- Uncracked Masonry
Applications
- Sill plates
- Ledgers
- Post bases
- Seating
- other hoedown applications
Specifications
General
- UOM
- BX
- Unit Size
- 25
- Pieces Per Unit
- 25/BX
- Weight
- 1.300000
- Product Type
- Concrete Screw Anchor
- MPN
- THDC25300CS6SS
- Product Brand
- SIMPSON Strong-Tie
- UPC
- 707392008804
Technical
- Diameter
- 1/4"
- Length
- 3"
- Head Type
- Countersunk Flat
- Drive Type
- 6-Lobe w/Pin
- Driver Size
- T30
- Material
- Stainless Steel
- Finish
- Plain
- Drill Bit Reference
- 1/4"
- Cordless
- No
